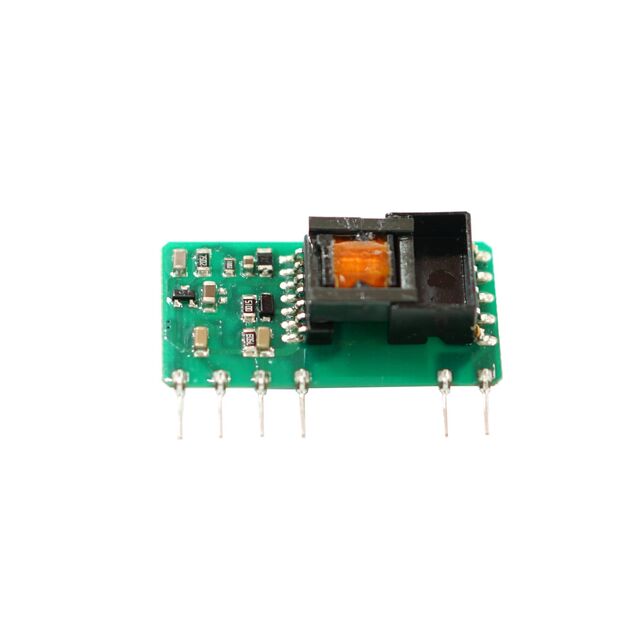

AMEOF5-5SLBJZ

Obsolete

aimtec

AC/DC CONVERTER 5V 4.3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMEOF5-5SLBJZ

Obsolete

aimtec

AC/DC CONVERTER 5V 4.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEOF5-5SLBJZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	850 mA
Efficiency	67 %
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SIP Module, 6 Leads
Power (Watts)	4.3 W
Size / Dimension [x]	1.75 "
Size / Dimension [x]	44.5 mm
Size / Dimension [y]	0.94 in
Size / Dimension [y]	24 mm
Size / Dimension [z]	13 mm
Size / Dimension [z]	0.51 in
Type	Open Frame
Voltage - Input [Max]	745 VDC, 528 VAC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Output 1	5 V
Weight	7.5 g
Weight	0.017 lb

AMEOF5 Series

Part	Current - Output (Max) [Max]	Applications	Load Regulation	Weight	Weight	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Number of Outputs	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Package / Case	Power (Watts)	Type
aimtec AMEOF5-15SLBJZ	340 mA	ITE (Commercial)	1 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	0.94 in	13 mm	1.75 "	24 mm	0.51 in	44.5 mm	15 V	1	1 %	90 VAC 100 V	528 VAC 745 VDC	76 %	16-SIP Module 6 Leads	5.1 W	Open Frame
aimtec AMEOF5-9SBJZ	560 mA	ITE (Commercial)	1 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	0.51 in	24 mm	1.75 "	13 mm	0.94 in	44.5 mm	9 V	1	1 %	90 VAC 100 V	528 VAC 745 VDC	70 %	16-SIP Module 6 Leads	5 W	Open Frame
aimtec AMEOF5-12SLBJZ	420 mA	ITE (Commercial)	2.5 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	1.75 in	13 mm	0.95 in	44.5 mm	0.51 in	24 mm	12 V	1	1.5 %	90 VAC	528 VAC	75 %	16-SIP Module 6 Leads	5 W	Open Frame
aimtec AMEOF5-24SLBJZ	210 mA	ITE (Commercial)	1 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	0.94 in	13 mm	1.75 "	24 mm	0.51 in	44.5 mm	24 V	1	1 %	90 VAC 100 V	528 VAC 745 VDC	76 %	16-SIP Module 6 Leads	5 W	Open Frame
aimtec AMEOF5-24SBJZ	210 mA	ITE (Commercial)	2.5 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	1.75 in	13 mm	0.95 in	44.5 mm	0.51 in	24 mm	24 V	1	1.5 %	90 VAC	528 VAC	75 %	16-SIP Module 6 Leads	5 W	Open Frame
aimtec AMEOF5-5SLBJZ	850 mA	ITE (Commercial)	1 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	0.94 in	13 mm	1.75 "	24 mm	0.51 in	44.5 mm	5 V	1	1 %	90 VAC 100 V	528 VAC 745 VDC	67 %	16-SIP Module 6 Leads	4.3 W	Open Frame
aimtec AMEOF5-9SLBJZ	560 mA	ITE (Commercial)	1 %	7.5 g	0.017 lb	Through Hole	85 °C	-40 °C	0.94 in	13 mm	1.75 "	24 mm	0.51 in	44.5 mm	9 V	1	1 %	90 VAC 100 V	528 VAC 745 VDC	70 %	16-SIP Module 6 Leads	5 W	Open Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.71

Description

General part information

AMEOF5 Series

Open Frame AC DC Converters 1 Output 5V 850mA 90 ~ 528 VAC, 100 ~ 745 VDC Input
