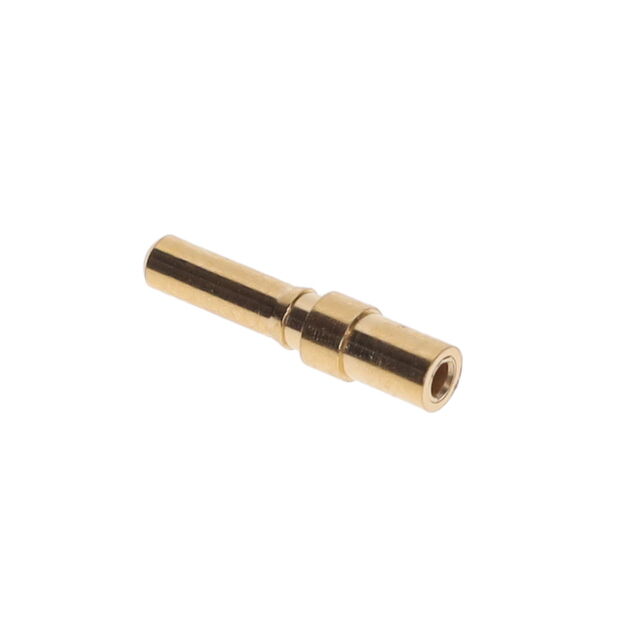

9101-0-15-15-16-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN RECEPT PIN .022-.034" .375"
Deep-Dive with AI
Search across all available documentation for this part.
9101-0-15-15-16-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN RECEPT PIN .022-.034" .375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9101-0-15-15-16-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.86 mm |
| Accepts Pin Diameter [Max] | 0.034 " |
| Accepts Pin Diameter [Min] | 0.56 mm |
| Accepts Pin Diameter [Min] | 0.022 " |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.086 in |
| Flange Diameter [diameter] | 2.18 mm |
| Length - Overall | 9.53 mm |
| Length - Overall [x] | 0.375 " |
| Mounting Hole Diameter [diameter] | 1.7 mm |
| Mounting Hole Diameter [diameter] | 0.067 " |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 0.33 " |
| Socket Depth | 8.38 mm |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.83 | |
| 10 | $ 1.59 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.49 | |||
| 100 | $ 1.43 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.19 | |||
| 1000 | $ 1.02 | |||
| 3000 | $ 0.95 | |||
Description
General part information
9101-0 Series
Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Press-Fit
Documents
Technical documentation and resources
No documents available
