Q-3604K0008009I

Active

Amphenol Custom Cable

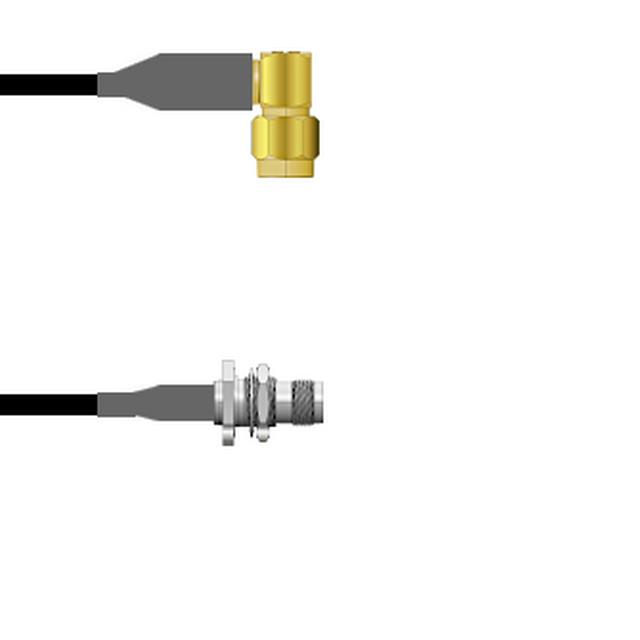

CBL ASSY SMA-TNC PLUG-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3604K0008009I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3604K0008009I

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-3604K0 Series

Part	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Feature	Connector Impedance	Overall Impedance	2nd Connector	Features	1st Connector Mounting Type	1st Connector	2nd Contact Gender	Cable Type	Style	Color	Length	Length	Length	2nd Connector Mounting Type	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-3604K0008003M	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	3 m	118.1 in	9.8 '	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008108I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	2.7 m	108 in	9 ft	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008.75M	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	750 mm	29.53 "		Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008018I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black				Panel Mount	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3604K0008072I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	1.8 m	72 in	6 ft	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008002M	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	2 m	78.7 in	6.6 ft	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008048I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	1200 mm	48 in	4 ft	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008024I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	609.6 mm	24 "		Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008001M	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	1 m	39.4 in	3.3 ft	Panel Mount	50 Ohms
Amphenol Custom Cable Q-3604K0008009I	1 GHz	Male	Bulkhead - Front Side Nut	50 Ohms	50 Ohms	TNC Jack	Shielded	Free Hanging (In-Line)	Right Angle SMA Plug	Female	RG-58	SMA to TNC	Black	228.6 mm	9 "		Panel Mount	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.61
		25	$ 80.03
		50	$ 78.44
		100	$ 76.85
		250	$ 75.26

Description

General part information

Q-3604K0 Series

Cable Assembly Coaxial SMA to TNC RG-58 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
