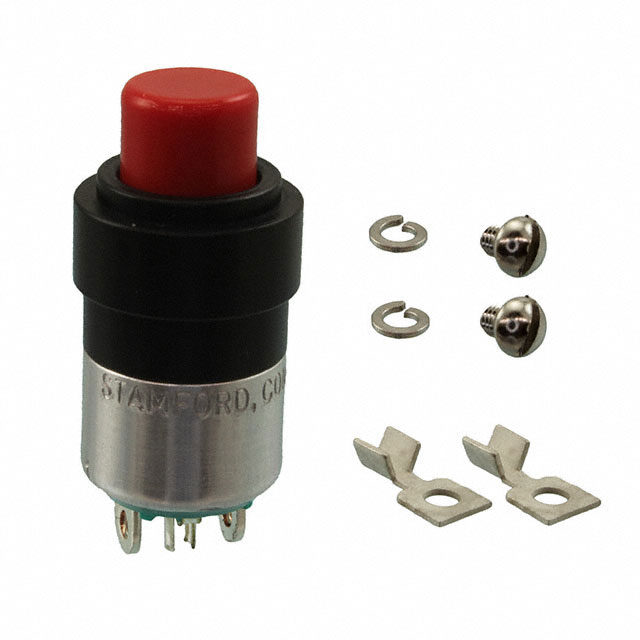

NX304AB1R-01
ActiveAmphenol NEXUS Technologies
TACTICAL PUSHBUTTON SC 4 CONTACT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NX304AB1R-01
ActiveAmphenol NEXUS Technologies
TACTICAL PUSHBUTTON SC 4 CONTACT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NX304AB1R-01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A |
| Ingress Protection | Dust Proof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.91 | |
| 10 | $ 17.18 | |||
| 25 | $ 16.99 | |||
Description
General part information
NX304AB Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
