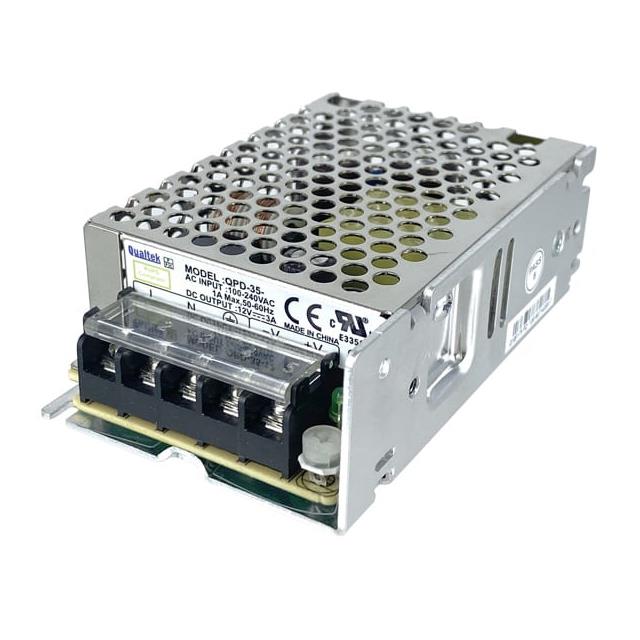

QPD-35-5

Active

Qualtek

AC/DC CONVERTER 5V 35W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 5V 35W

Technical Specifications

Parameters and characteristics for this part

Specification	QPD-35-5

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	6 A
Efficiency	80 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	35 W
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Approval Agency	Number of Outputs	Current - Output 1	Features	Efficiency	Type	Voltage - Isolation	Applications	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1
Qualtek QPD-35-48	CB CE cURus	1	760 mA	Adjustable Output DC Input Capable Universal Input	88 %	Enclosed	3000 V	ITE (Commercial)	Chassis Mount	90 VAC	264 VAC	35 W	-25 °C	70 °C	48 V
Qualtek QPD-35-24	CB CE cURus	1	1.5 A	Adjustable Output DC Input Capable Universal Input	87 %	Enclosed	3000 V	ITE (Commercial)	Chassis Mount	90 VAC	264 VAC	35 W	-25 °C	70 °C	24 V
Qualtek QPD-35-5	CB CE cURus	1	6 A	Adjustable Output DC Input Capable Universal Input	80 %	Enclosed	3000 V	ITE (Commercial)	Chassis Mount	90 VAC	264 VAC	35 W	-25 °C	70 °C	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 31.38

General part information

Enclosed AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
