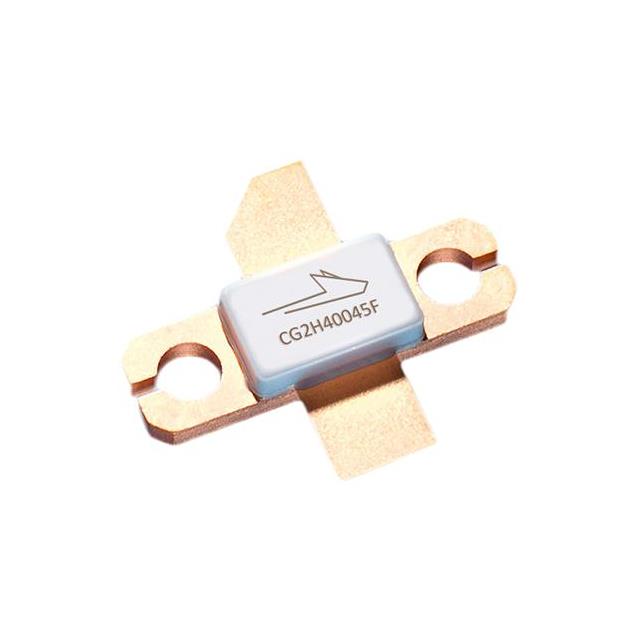

CG2H40045F-AMP

MACOM Technology Solutions

CG2H40045F DEV BOARD WITH HEMT

Search across all available documentation for this part.

MACOM Technology Solutions

CG2H40045F DEV BOARD WITH HEMT

Technical Specifications

Parameters and characteristics for this part

Specification	CG2H40045F-AMP

For Use With/Related Products	CG2H40045F
Frequency [Max]	4 GHz
Frequency [Min]	0 Hz
Supplied Contents	Board(s)
Type	HEMT

Part	Voltage - Test	Technology	Current - Test	Mounting Type	Frequency	Gain	Package / Case	Voltage - Rated	Supplier Device Package	Power - Output	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Supplied Contents
MACOM Technology Solutions CG2H40045P	28 V	HEMT	400 mA	Surface Mount	4 GHz	16 dB	440206	120 VDC	440206	45 W
MACOM Technology Solutions CG2H40045F	28 V	HEMT	400 mA	Chassis Mount	4 GHz	16 dB	440193	120 VDC	440193
MACOM Technology Solutions CG2H40045F-AMP											CG2H40045F	HEMT	4 GHz	0 Hz	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1039.68

General part information

CG2H40045F GaN HEMT 0Hz ~ 4GHz Evaluation Board

Technical documentation and resources

No documents available
