0191420005

Active

Molex

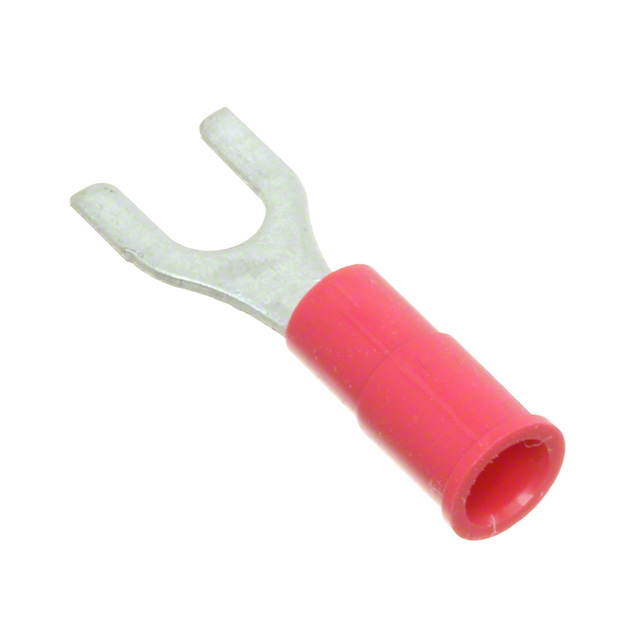

CONN SPADE TERM 18-22AWG #8 RED

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec +1

0191420005

Active

Molex

CONN SPADE TERM 18-22AWG #8 RED

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191420005

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.974 in
Length - Overall [x]	24.74 mm
Length - Ring Center to Termination [x]	7.7 mm
Length - Ring Center to Termination [x]	0.303 in
Length - Termination	0.455 "
Length - Termination	11.56 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.173 in
Tongue Inside Opening [x]	4.39 mm
Width - Outer Edges [y]	8.03 mm
Width - Outer Edges [y]	0.316 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019142 Series

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Stud/Tab Size	Terminal Type	Color	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Contact Finish	Length - Termination	Length - Termination	Insulation Diameter	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Insulation Diameter [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination
Molex 0191420170	7.7 mm	0.303 in	8.03 mm	0.316 in	Poly-Vinyl Chloride (PVC)	6 Stud	Standard	Red	Copper	22 AWG	17.5 AWG	Crimp	3.71 mm	0.146 in	Insulated	Electro-Tin	0.455 "	11.56 mm	3.68 mm	0.145 "	0.974 in	24.74 mm	Free Hanging (In-Line)
Molex 0191420169	6.83 mm	0.269 in			Poly-Vinyl Chloride (PVC)	10 Stud	Standard	Blue	Copper			Crimp	5.03 mm	0.198 in	Insulated	Electro-Tin	0.455 "	11.56 mm		0.175 in	0.966 in	24.54 mm	Free Hanging (In-Line)	4.45 mm	0.388 in	9.86 mm
Molex 0191420027	5.36 mm	0.211 in			Poly-Vinyl Chloride (PVC)		Standard	Blue	Copper			Crimp	4.39 mm	0.173 in	Insulated	Electro-Tin	0.455 "	11.56 mm		0.175 in	0.831 in	21.1 mm	Free Hanging (In-Line)	4.45 mm	0.295 in	7.49 mm	8 Stud
Molex 0191420020					Poly-Vinyl Chloride (PVC)	6 Stud	Standard	Blue	Copper			Crimp	3.71 mm	0.146 in	Insulated	Electro-Tin	0.455 "	11.56 mm		0.175 in	0.834 "	21.18 mm	Free Hanging (In-Line)	4.45 mm	0.245 in	6.22 mm		0.209 in	5.31 mm
Molex 0191420029	6.83 mm	0.269 in	9.19 mm	0.362 "	Poly-Vinyl Chloride (PVC)	6 Stud	Standard	Blue	Copper			Crimp	3.71 mm	0.146 in	Insulated	Electro-Tin	0.455 "	11.56 mm		0.175 in	0.966 in	24.54 mm	Free Hanging (In-Line)	4.45 mm
Molex 0191420005	7.7 mm	0.303 in	8.03 mm	0.316 in	Poly-Vinyl Chloride (PVC)		Standard	Red	Copper	22 AWG	17.5 AWG	Crimp	4.39 mm	0.173 in	Insulated	Electro-Tin	0.455 "	11.56 mm	3.68 mm	0.145 "	0.974 in	24.74 mm	Free Hanging (In-Line)				8 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.38
		100	$ 0.28
		1000	$ 0.22
		3000	$ 0.20

Description

General part information

019142 Series

Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Rings, Spades Prod Spec

Datasheet
