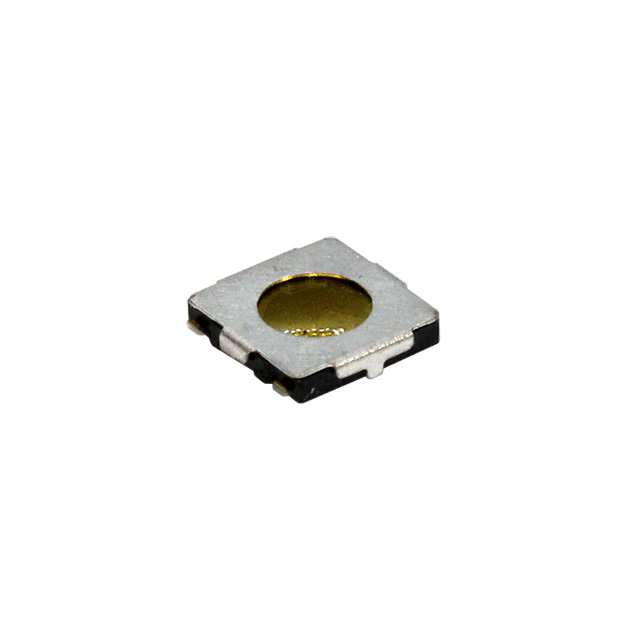

CS1214JF260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS1214JF260

Actuator Height off PCB, Vertical	0.8 mm
Actuator Material	Brass, Nickel Plated
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	5.2 mm
Outline [y]	5.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Actuator Type	Actuator Material	Illumination	Switch Travel	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Mounting Type	Switch Function	Termination Style	Outline [y]	Outline [x]	Actuator Orientation	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
CIT Relay and Switch CS1214JF260	Flush	Brass Nickel Plated	Non-Illuminated	0.25 mm	0.05 A 50 VDC	0.8 mm	Surface Mount	Off-Mom	J Lead	5.2 mm	5.2 mm	Top Actuated	260 gf	85 °C	-40 °C	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
