02115002-000
ObsoleteTE Connectivity Measurement Specialties

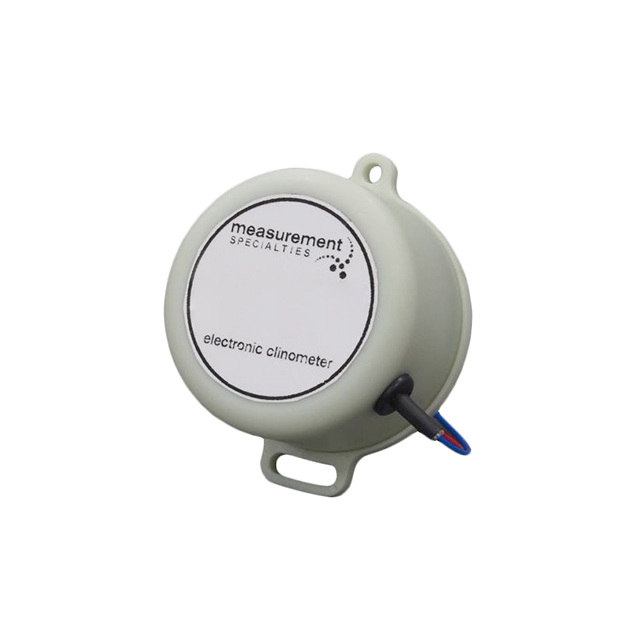

SENSOR INCLINOMETER 65DEG MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02115002-000
ObsoleteTE Connectivity Measurement Specialties
SENSOR INCLINOMETER 65DEG MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02115002-000 |
|---|---|
| Axis | X or Y |
| Bandwidth | 2 Hz |
| Interface | Analog |
| Measuring Range [Max] | 65 ° |
| Measuring Range [Min] | -65 ° |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Sensitivity | 0.5 % |
| Voltage Rating [Max] | 15 V |
| Voltage Rating [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0211 Series
Sensor Inclinometer ±65° X or Y Axis 2Hz Bandwidth Module
