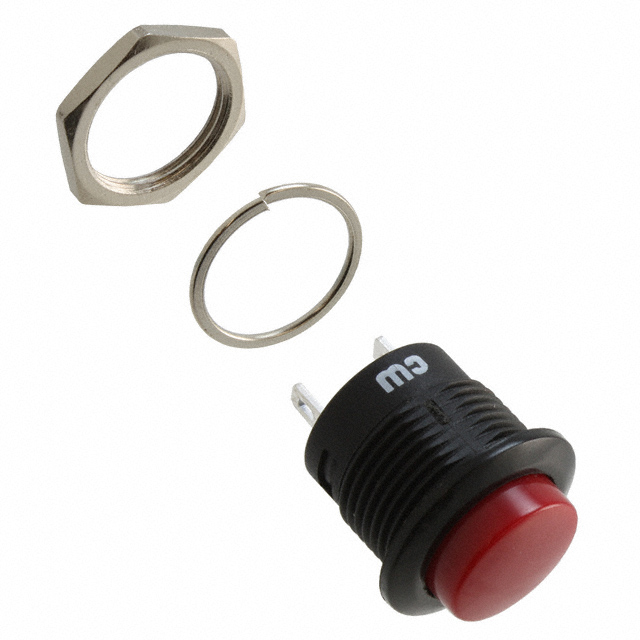

GPB507A05BR

Active

CW Industries

SWITCH PUSH SPST-NO 6A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH PUSH SPST-NO 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB507A05BR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	6 A
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Switch Function	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Actuator Marking	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - AC	Mounting Type
CW Industries GPB507A05BR	Off-Mom	Solder Lug	16 mm	Button Round	6 A	No Marking	Standard	Red	85 °C	-20 C	SPST-NO	125 V	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
