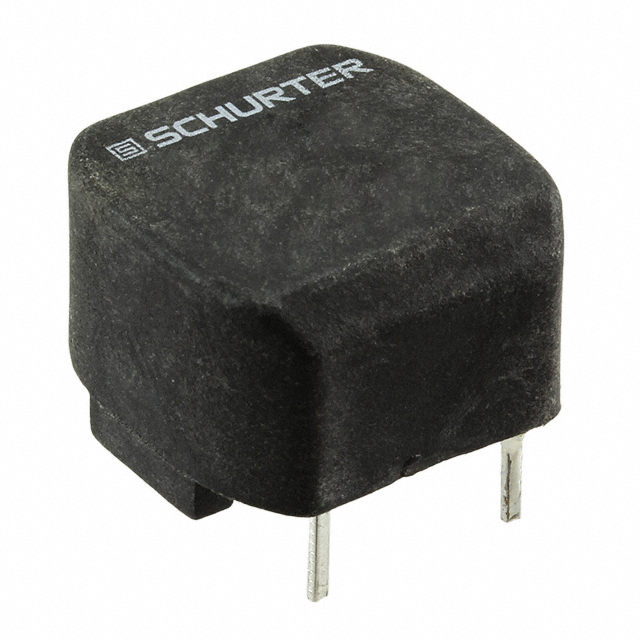

DSF-18-0002
ActiveSCHURTER Inc.
CMC 600MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DSF-18-0002
ActiveSCHURTER Inc.
CMC 600MA 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSF-18-0002 |
|---|---|
| Current Rating (Max) [Max] | 600 mA |
| DC Resistance (DCR) (Max) | 360 mOhm |
| Height (Max) [Max] | 12.6 mm |
| Height (Max) [Max] | 0.496 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial - 4 Leads |
| Size / Dimension [x] | 18.2 mm |
| Size / Dimension [x] | 0.717 in |
| Size / Dimension [y] | 17.8 mm |
| Size / Dimension [y] | 0.701 in |
| Voltage Rating - DC | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.48 | |
| 50 | $ 4.64 | |||
| 100 | $ 4.12 | |||
Description
General part information
DSF-18 Series
Power Inductors - Leaded DSF Storage choke 2A
Documents
Technical documentation and resources
No documents available
