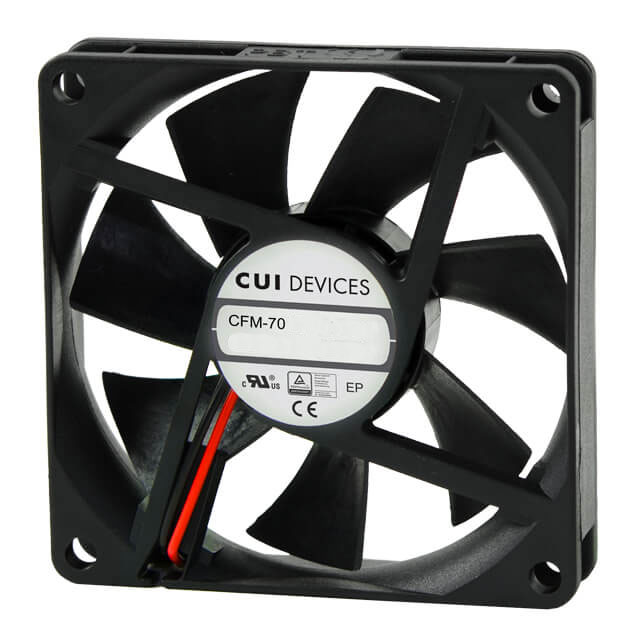

CFM-7020V-226-360

Obsolete

CUI Devices

FAN AXIAL 70X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-7020V-226-360

Obsolete

CUI Devices

FAN AXIAL 70X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-7020V-226-360

Air Flow	0.658 mł/min
Air Flow	23.5 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.051 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.23 W
RPM	2600 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.132 lb
Weight	59.87 g
Width [y]	20 mm

CFM-7020 Series

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Material - Blade	Width [y]	Features	Lifetime @ Temp.	Current Rating (Amps)	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Voltage - Rated	Noise	Size / Dimension [y]	Size / Dimension [x]	RPM	Power (Watts)	Termination	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]
CUI Devices CFM-7020V-146-415	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart	70000 Hrs	0.328 A	Tubeaxial	43 CFM	1.2 m³/min	69.7 Pa	0.28 in H2O	12 VDC	41.5 dB	70 mm	70 mm	4600 RPM	3.94 W	2 Wire Leads	0.177 lb	80.29 g
CUI Devices CFM-7020V-126-260-20	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	70000 Hrs	89 mA	Tubeaxial	23.5 CFM	0.658 mł/min	22.4 Pa	0.09 in H2O	12 VDC	26 dB	70 mm	70 mm	2600 RPM	1.07 W	3 Wire Leads	0.132 lb	59.87 g	4.5 V	13.8 VDC
CUI Devices CFM-7020V-146-415-11	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart	70000 Hrs	0.328 A	Tubeaxial	43 CFM	1.2 m³/min	69.7 Pa	0.28 in H2O	12 VDC	41.5 dB	70 mm	70 mm	4600 RPM	3.94 W	3 Wire Leads	0.176 lb	79.83 g
CUI Devices CFM-7020V-132-330-20	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart Speed Sensor (Tach)	70000 Hrs	150 mA	Tubeaxial	29 CFM	0.812 mł/min	34.9 Pa	0.14 in H2O	12 VDC	33 dB(A)	70 mm	70 mm	3200 RPM	1.8 W	3 Wire Leads	0.132 lb	59.87 g	4.5 V	13.8 VDC
CUI Devices CFM-7020V-226-360	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	20 mm	Auto Restart	70000 Hrs	0.051 A	Tubeaxial	23.5 CFM	0.658 mł/min	22.4 Pa	0.09 in H2O	24 VDC	26 dB	70 mm	70 mm	2600 RPM	1.23 W	2 Wire Leads	0.132 lb	59.87 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CFM-7020 Series

Fan Tubeaxial 24VDC Square - 70mm L x 70mm H omniCOOL™ Magnetic Sleeve 23.5 CFM (0.658mł/min) 2 Wire Leads
