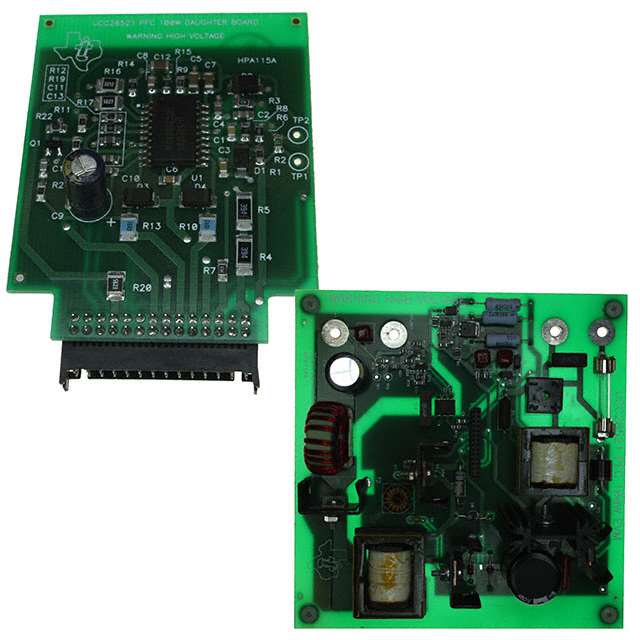

UCC28521EVM

Obsolete

Texas Instruments

EVALUATION MODULE FOR UCC28521

Search across all available documentation for this part.

Obsolete

Texas Instruments

EVALUATION MODULE FOR UCC28521

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Function	Utilized IC / Part	Contents	Type	Power - Output	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Main Purpose
Texas Instruments UCC28514EVM	Board(s)	Power Factor Correction	UCC28514	Board(s)	Power Management
Texas Instruments UCC28528EVM	Board(s)	Power Factor Correction	UCC28528		Power Management
Texas Instruments UCC28521EVM	Board(s)		UCC28521			100 W	12 V	Fully Populated	Isolated	1	Flyback	85 VAC	265 VAC	8.33 A	AC/DC Primary Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UCC28521 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board

Technical documentation and resources
