C0754A.18.10

Active

Prysmian Group

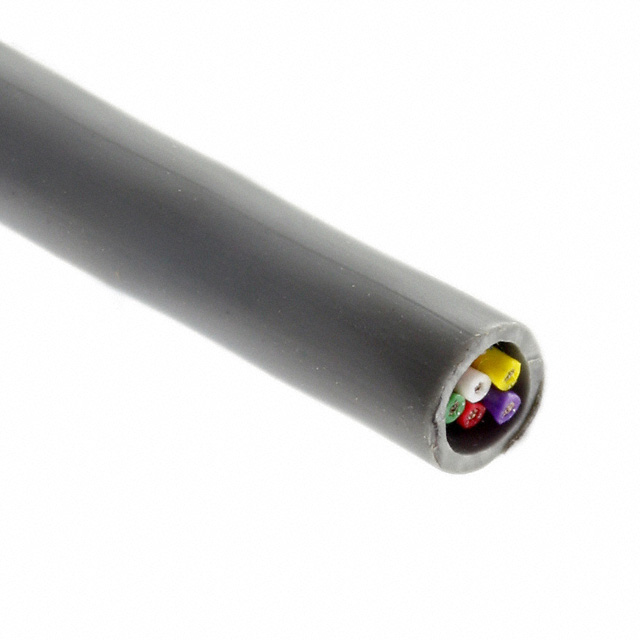

CABLE 7COND 24AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 7COND 24AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0754A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Length	Length	Length [x]	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Length [x]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Insulation	Usage	Features	Voltage	Shield Type	Shield Material	Number of Conductors
Prysmian Group C0754A.41.10	-20 C	80 C 105 ░C	100 %	1000 ft	15.24 m 304.8 m	50 ft 100 ft	Gray	Multi-Conductor	32 AWG	7	24 AWG	30.5 m	Poly-Vinyl Chloride (PVC)	5.11 mm	0.201 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	Computer	Drain Wire	300 V	Foil	Flexfoil®	7
Prysmian Group C0754A.21.10	-20 C	80 C	100 %	1000 ft	304.8 m		Gray	Multi-Conductor	32 AWG	7	24 AWG		Poly-Vinyl Chloride (PVC)	5.11 mm	0.201 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	Computer	Drain Wire	300 V	Foil	Flexfoil®	7
Prysmian Group C0754A.18.10	-20 C	80 C	100 %			500 '	Gray	Multi-Conductor	32 AWG	7	24 AWG	152.4 m	Poly-Vinyl Chloride (PVC)	5.11 mm	0.201 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	Computer	Drain Wire	300 V	Foil	Flexfoil®	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Conductor Multi-Conductor Cable Gray 24 AWG Foil 500.0' (152.4m)
