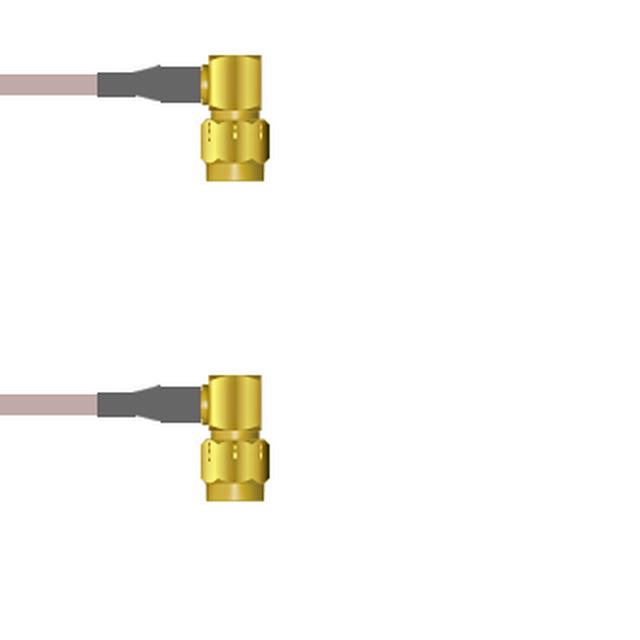

Q-330330001018I

Active

Amphenol Custom Cable

CBL ASSY SMA PLUG TO PLUG 18"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA PLUG TO PLUG 18"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	2nd Connector Mounting Type	Cable Impedance	Style	Features	Cable Type	Overall Impedance	Length [x]	Length [x]	1st Connector Mounting Type	1st Connector	1st Contact Gender	Connector Impedance	Color	2nd Connector	Frequency - Max [Max]	Length	Length	Length
Amphenol Custom Cable Q-330330001018I	Male	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Shielded	RG-178	50 Ohms	457.2 mm	457.2 mm	Free Hanging (In-Line)	Right Angle SMA Plug	Male	50 Ohms	Copper	SMA Plug Right Angle	3 GHz
Amphenol Custom Cable Q-330330001012I	Male	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Shielded	RG-178	50 Ohms			Free Hanging (In-Line)	Right Angle SMA Plug	Male	50 Ohms	Copper	SMA Plug Right Angle	3 GHz	12 "	304.8 mm
Amphenol Custom Cable Q-330330001003I	Male	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Shielded	RG-178	50 Ohms			Free Hanging (In-Line)	Right Angle SMA Plug	Male	50 Ohms	Copper	SMA Plug Right Angle	3 GHz	3 in	76.2 mm
Amphenol Custom Cable Q-330330001084I	Male	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Shielded	RG-178	50 Ohms			Free Hanging (In-Line)	Right Angle SMA Plug	Male	50 Ohms	Copper	SMA Plug Right Angle	3 GHz	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-330330001024I	Male	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Shielded	RG-178	50 Ohms			Free Hanging (In-Line)	Right Angle SMA Plug	Male	50 Ohms	Copper	SMA Plug Right Angle	3 GHz	24 "	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-178 18.00" (457.20mm)

Technical documentation and resources

No documents available
