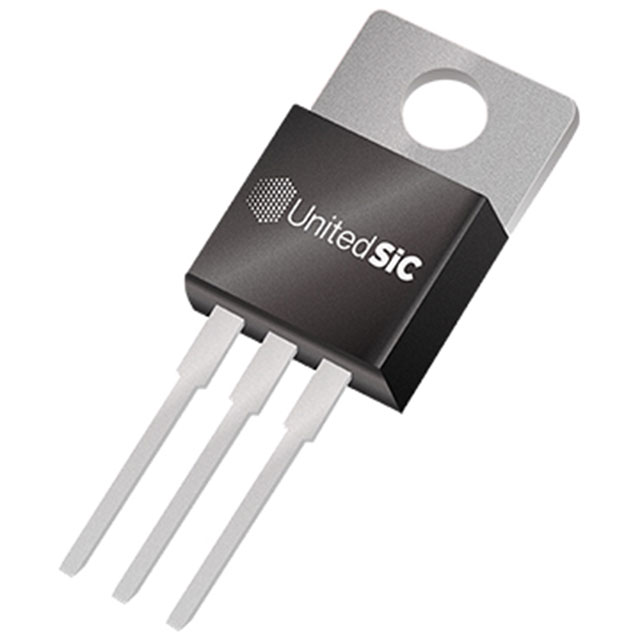

UF3C065040T3S

Active

Qorvo

MOSFET N-CH 650V 54A TO220-3

Search across all available documentation for this part.

Active

Qorvo

MOSFET N-CH 650V 54A TO220-3

Technical Specifications

Parameters and characteristics for this part

Specification	UF3C065040T3S

Current - Continuous Drain (Id) @ 25°C	54 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	12 V, 12 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	51 nC
Input Capacitance (Ciss) (Max) @ Vds	1500 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3
Power Dissipation (Max)	326 W
Rds On (Max) @ Id, Vgs	52 mOhm
Supplier Device Package	TO-220-3
Vgs (Max)	25 V
Vgs(th) (Max) @ Id [Max]	6 V

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Rds On (Max) @ Id, Vgs	Mounting Type	Vgs(th) (Max) @ Id [Max]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Supplier Device Package
Qorvo UF3C065040K3S	51 nC	TO-247-3	52 mOhm	Through Hole	6 V	1500 pF	25 V	326 W	54 A	N-Channel	12 V 12 V	-55 °C	175 ░C	650 V	TO-247-3
Qorvo UF3C065040T3S	51 nC	TO-220-3	52 mOhm	Through Hole	6 V	1500 pF	25 V	326 W	54 A	N-Channel	12 V 12 V	-55 °C	175 ░C	650 V	TO-220-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 650 V 54A (Tc) 326W (Tc) Through Hole TO-220-3

Technical documentation and resources

No documents available
