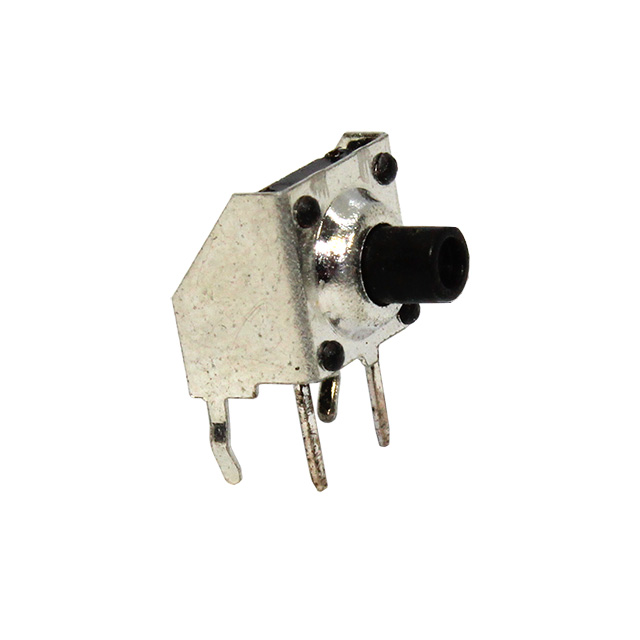

STV4.35LF260Q
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STV4.35LF260Q |
|---|---|
| Actuator Length, Right Angle | 4.35 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 48 VDC |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 8.2 mm |
| Outline [y] | 5.8 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.45 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.69 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.34 | |||
| 5000 | $ 0.32 | |||
Description
General part information
STV4.35 Series
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
