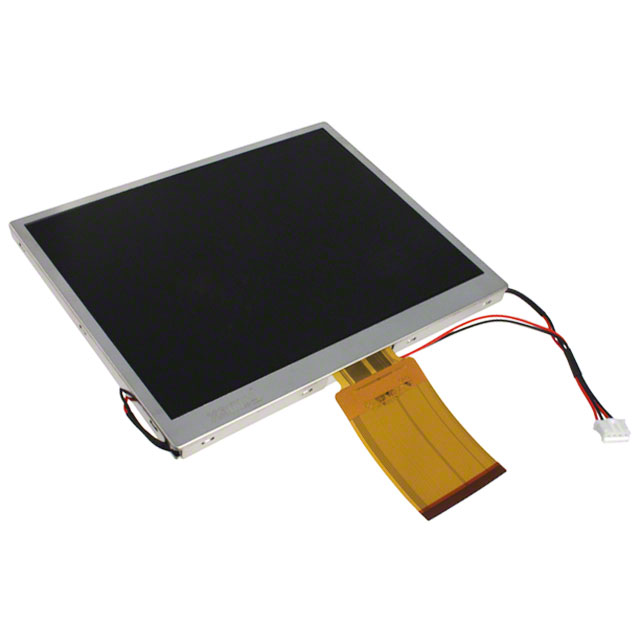

LCT-H320240M57W

Active

Lumex Opto/Components Inc.

DISPLAY LCD-TFT 320X240

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

DISPLAY LCD-TFT 320X240

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [z]	Dot Size [y]	Dot Pitch [custom]	Dot Pitch [custom]	Display Type	Graphics Color	Interface	Backlight	Viewing Area [custom]	Viewing Area [custom]	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Touchscreen	Dot Size [x]	Viewing Area [y]	Viewing Area [z]	Diagonal Screen Size	Diagonal Screen Size
Lumex Opto/Components Inc. LCT-H320240M35W	0.22 mm	0.22 mm	0.07 mm	0.22 mm	TFT - Color	Blue Green Red	Parallel/Serial	LED - White	72 mm	54.5 mm	QVGA	320 pixels	240 pixels	Transmissive
Lumex Opto/Components Inc. LCT-H320240M35WT	0.22 mm	0.22 mm	0.07 mm	0.22 mm	TFT - Color	Blue Green Red	Parallel/Serial	LED - White	72 mm	54.5 mm	QVGA	320 pixels	240 pixels	Transmissive	Resistive
Lumex Opto/Components Inc. LCT-H320240M57W		0.36 mm			TFT - Color	Blue Green Red	Parallel/Serial	LED - White			QVGA	320 pixels	240 pixels	Transmissive		0.12 mm	115.2 mm	86.4 mm	5.7 in	144.78 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 5.7" (144.78mm) 320 x 240 (QVGA)

Technical documentation and resources
