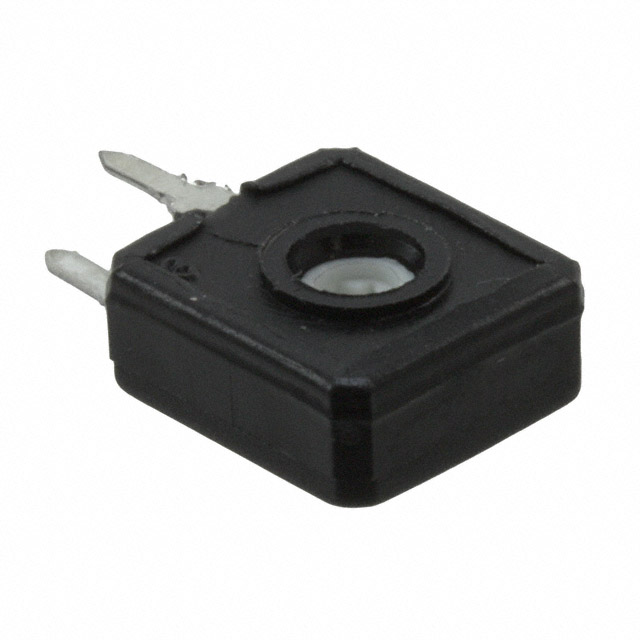

CB10MH474K

Obsolete

TE Connectivity Passive Product

TRIMMER 470K OHM 0.15W PC PIN

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

TRIMMER 470K OHM 0.15W PC PIN

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Adjustment Type	Tolerance	Temperature Coefficient	Termination Style	Resistance	Mounting Type	Resistive Material	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
TE Connectivity Passive Product CB10MV105M	1	Top Adjustment	20 %	1000 ppm/°C	PC Pins	1 MOhms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10LV105M	1	Top Adjustment	20 %	1000 ppm/°C	PC Pins	1 MOhms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10LV222M	1	Top Adjustment	20 %	500 ppm/°C	PC Pins	2200 Ohms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10LV101M	1	Top Adjustment	20 %	500 ppm/°C	PC Pins	100 Ohms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10LV104M	1	Top Adjustment	20 %	500 ppm/°C	PC Pins	100 kOhms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10MV103M	1	Top Adjustment	20 %	500 ppm/°C	PC Pins	10000 Ohms	Through Hole	Carbon	150 mW
TE Connectivity Passive Product CB10MH474K	1	Side Adjustment	10 %	1000 ppm/°C	PC Pins	470 kOhms	Through Hole	Carbon	150 mW	9.8 mm	10.8 mm	0.425 "	0.386 "
TE Connectivity Passive Product CB10LV473M	1	Top Adjustment	20 %	500 ppm/°C	PC Pins	47 kOhms	Through Hole	Carbon	150 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

470 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
