T4033014041-000

Active

TE Connectivity Raychem Cable Protection

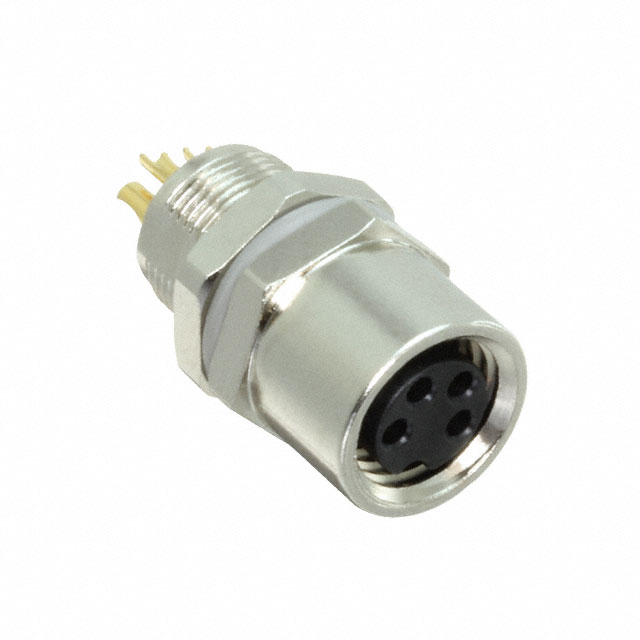

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T4033014041-000

Applications	Telecommunications, Automation Control, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M8-4
Voltage Rating	30 VDC

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Primary Material	Shell Material	Number of Positions	Color	Orientation	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Voltage Rating	Contact Finish - Mating	Shell Size - Insert	Current Rating (Amps)	Mounting Feature
TE Connectivity Raychem Cable Protection T4033014041-000	Automation Control Industrial Telecommunications	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Metal	Copper Alloy	4	Silver	A	Nickel	3 µin	0.076 µm	Receptacle Female Sockets	30 VDC	Gold	M8-4	3 A	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
