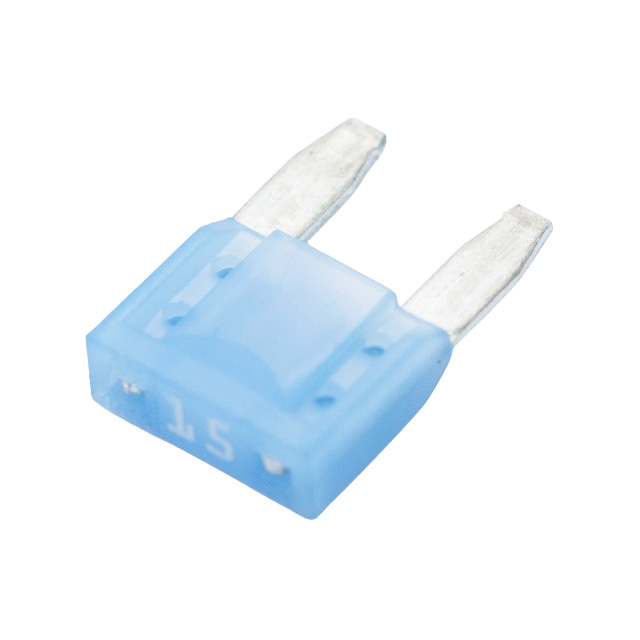

ANM-UL-15A

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANM-UL-15A

Approval Agency	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA
Color	Blue
Current Rating (Amps)	15 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.472 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Size / Dimension [z]	0.386 in
Size / Dimension [z]	9.8 mm
Voltage Rating - DC	32 V

Part	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Fuse Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Response Time	Color	Mounting Type	Package / Case
OptiFuse ANM-UL-4A	32 V	1 kA	4 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	cURus ISO SAE UL 248	Fast Blow	Pink	Requires Holder	Blade Miniature
OptiFuse ANM-UL-5A	32 V	1 kA	5 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	cURus ISO SAE UL 248	Fast Blow	Tan	Requires Holder	Blade Miniature
OptiFuse ANM-UL-25A	32 V	1 kA	25 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	cURus ISO SAE UL 248	Fast Blow	Clear White	Requires Holder	Blade Miniature
OptiFuse ANM-UL-7.5A	32 V	1 kA	7.5 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	cURus ISO SAE UL 248	Fast Blow	Brown	Requires Holder	Blade Miniature
OptiFuse ANM-UL-15A	32 V	1 kA	15 A	Automotive	0.157 in	0.386 in	4 mm	9.8 mm	0.472 in	12 mm	cURus ISO SAE UL 248	Fast Blow	Blue	Requires Holder	Blade Miniature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34

General part information

15 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
