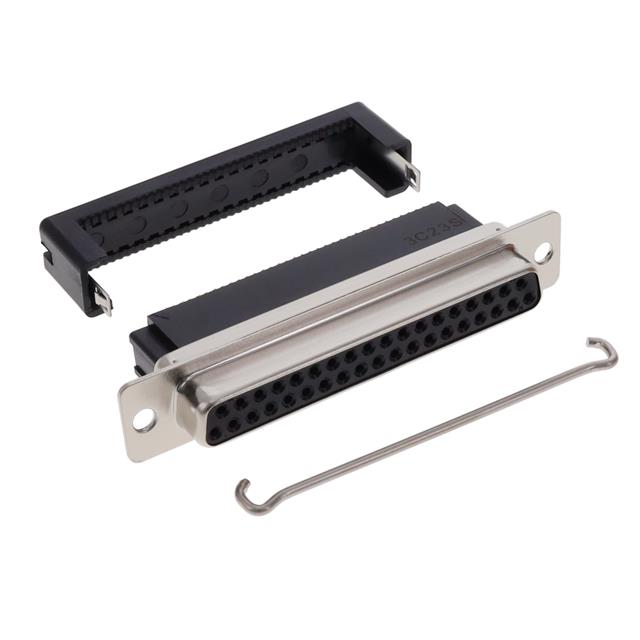

FDC-37S(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB RCPT 37POS IDC

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB RCPT 37POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	FDC-37S(05)

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Voltage Rating	200 V

Part	Contact Material	Primary Material	Contact Finish	Flange Feature	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Style	Number of Rows	Voltage Rating	Color	Dielectric Material	Mounting Type	Shell Material, Finish	Shell Size, Connector Layout	Features	Termination	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FDC-37PF(05)	Copper Alloy	Metal	Gold	Housing/Shell (Unthreaded)	Male Pins Plug	Signal	85 °C	-55 °C	37	D-Sub	2	200 V	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Nickel Plated Steel	4 (DC C)	Feed Through Grounding Indents	IDC Ribbon Cable
Hirose Electric USA, Inc. FDCD-37PF(55)	Beryllium Copper	Metal	Gold	Housing/Shell (Unthreaded)	Male Pins Plug	Signal	85 °C	-55 °C	37	D-Sub	2	200 V	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Nickel Plated Steel	4 (DC C)	Feed Through Grounding Indents	IDC Ribbon Cable	8 çin	0.203 çm
Hirose Electric USA, Inc. FDCD-37P(55)	Beryllium Copper	Metal	Gold	Housing/Shell (Unthreaded)	Male Pins Plug	Signal	85 °C	-55 °C	37	D-Sub	2	200 V	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Nickel Plated Steel	4 (DC C)	Feed Through	IDC Ribbon Cable	8 çin	0.203 çm
Hirose Electric USA, Inc. FDC-37S(05)	Copper Alloy	Metal	Gold	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Signal	85 °C	-55 °C	37	D-Sub	2	200 V	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Nickel Plated Steel	4 (DC C)	Feed Through	IDC Ribbon Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
