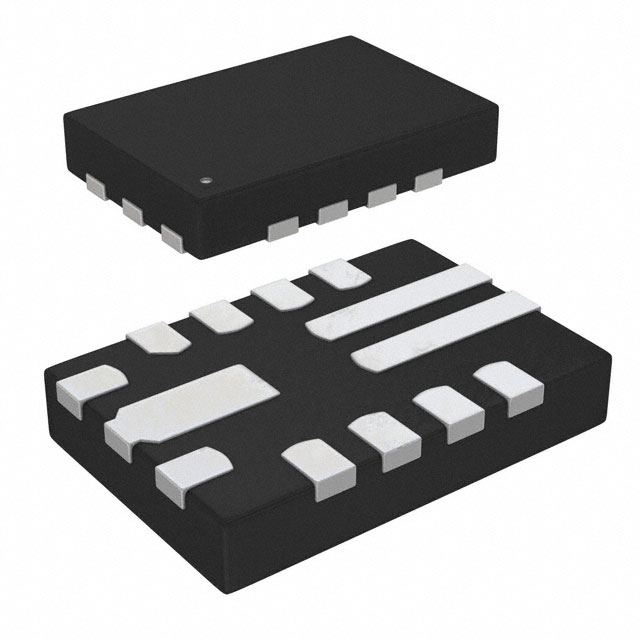

RT6207AHGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 5A 13UQFN FC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT6207AHGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 5A 13UQFN FC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT6207AHGQUF |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching | 650 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 13-UFQFN Exposed Pad |
| Supplier Device Package | 13-UQFN (2x3) FC |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 8 V |
| Voltage - Output (Min/Fixed) | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.11 | |
| 10 | $ 2.02 | |||
| 25 | $ 1.74 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 3.11 | ||
| 10 | $ 2.02 | |||
| 25 | $ 1.74 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.17 | |||
| Tape & Reel (TR) | 1500 | $ 0.95 | ||
| 3000 | $ 0.92 | |||
Description
General part information
RT6207 Series
Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 5A 13-UFQFN Exposed Pad
