574204B00000G

Active

Boyd Laconia, LLC

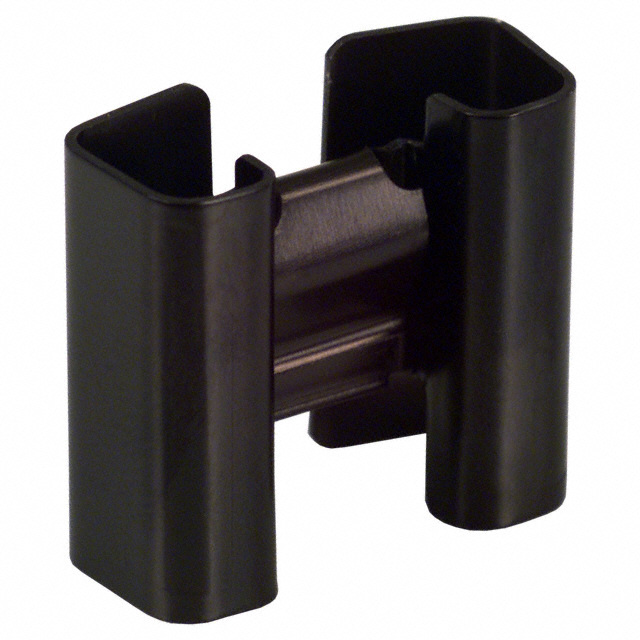

HEATSINK TO-202 CLIP-ON 5W

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-202 CLIP-ON 5W

Technical Specifications

Parameters and characteristics for this part

Specification	574204B00000G

Attachment Method	Clip
Fin Height	10.67 mm
Fin Height	0.42 in
Length [x]	22.86 mm
Length [x]	0.9 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-202
Power Dissipation @ Temperature Rise	1 W
Shape	Rectangular
Thermal Resistance @ Forced Air Flow	8 °C/W, 200 LFM
Thermal Resistance @ Natural	16.8 °C/W
Type	Board Level
Width [x]	1.02 "
Width [x]	25.91 mm

Part	Thermal Resistance @ Forced Air Flow	Power Dissipation @ Temperature Rise	Package Cooled	Type	Fin Height	Fin Height	Width [x]	Width [x]	Shape	Material	Material Finish	Attachment Method	Length [x]	Length [x]	Thermal Resistance @ Natural
Boyd Laconia, LLC 574204B00000G	8 °C/W 200 LFM	1 W	TO-202	Board Level	10.67 mm	0.42 in	1.02 "	25.91 mm	Rectangular	Aluminum	Black Anodized	Clip	22.86 mm	0.9 in	16.8 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink TO-202 Aluminum 1.0W @ 20°C Board Level
