C-MG2455A-02
ObsoleteZilog
IC RF TXRX+MCU 802.15.4 48QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C-MG2455A-02 |
|---|---|
| Current - Receiving | 32.2 mA |
| Current - Transmitting [Max] | 42.1 mA |
| Current - Transmitting [Min] | 29.7 mA |
| Data Rate (Max) | 1 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 22 |
| Memory Size | 8 kB, 96 kB, 1 kB |
| Modulation | O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

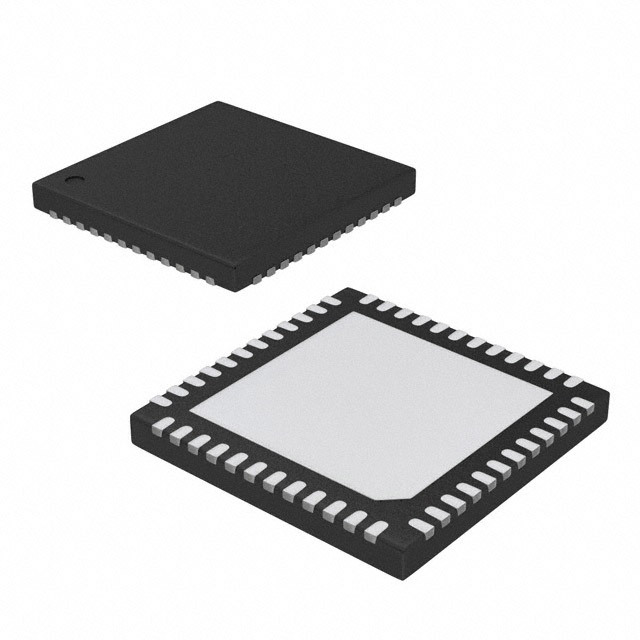

| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 8 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART, I2S, SPI |
| Supplier Device Package | 48-QFN (7x7) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C-MG2455 Series
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 48-VFQFN Exposed Pad
