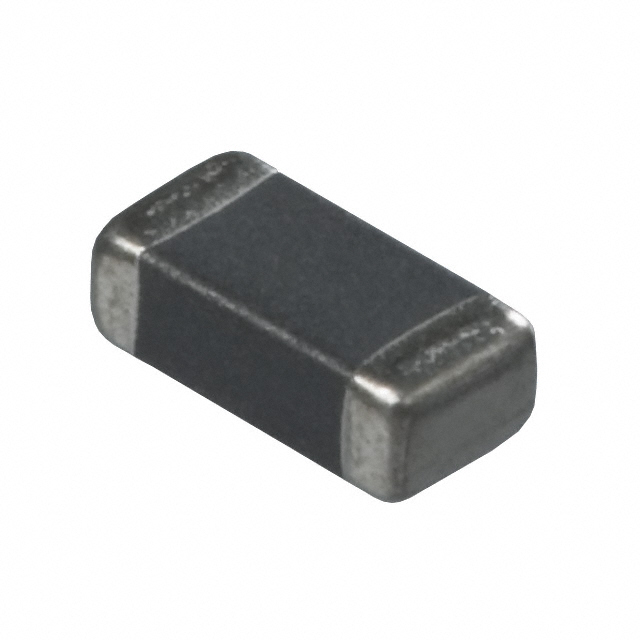

LQM32PN1R0MG0L
ActiveMurata Power Solutions Inc.
FIXED IND 1UH 1.8A 60 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
LQM32PN1R0MG0L
ActiveMurata Power Solutions Inc.
FIXED IND 1UH 1.8A 60 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LQM32PN1R0MG0L |
|---|---|
| Current Rating (Amps) | 1.8 A |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Supplier Device Package | 3225 |
| Tolerance | 20 % |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.48 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.53 | |||
| 25 | $ 0.48 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.31 | |||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
Description
General part information
LQM32PN Series
1 µH Shielded Multilayer Inductor 1.8 A 60mOhm Max 1210 (3225 Metric)
