1139-6021
ActiveAmphenol SV Microwave

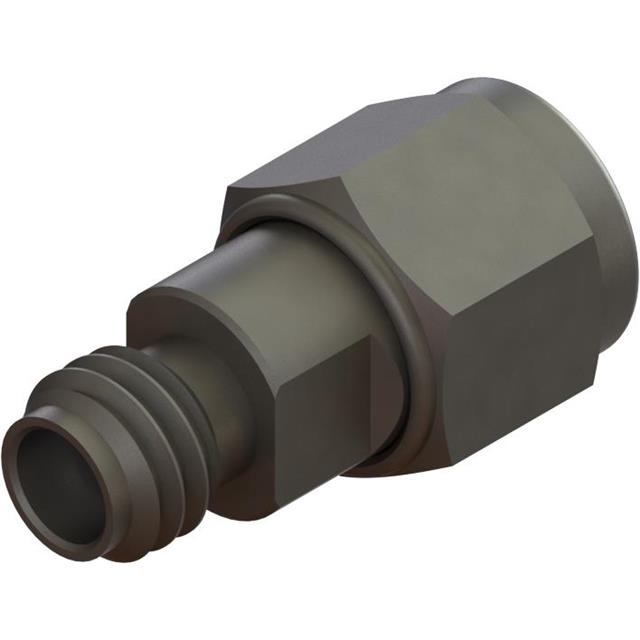

1.0MM MALE TO FEMALE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1139-6021
ActiveAmphenol SV Microwave
1.0MM MALE TO FEMALE ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1139-6021 |
|---|---|
| Adapter Series [Max] | 1 mm |
| Adapter Series [Min] | 1 mm |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 1 mm |
| Convert From (Adapter End) | Female Socket |
| Convert To (Adapter End) | 1 mm |
| Convert To (Adapter End) | Male Pin |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 110 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 922.08 | |
Description
General part information
1139-60 Series
Adapter Coaxial Connector 1.0mm Jack, Female Socket To 1.0mm Plug, Male Pin 50 Ohms
