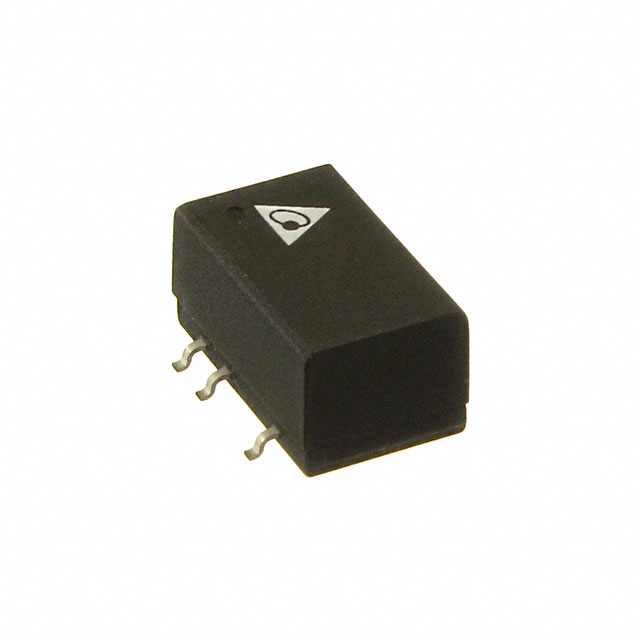

SH01S2415A

Active

Delta Electronics

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Features	Package / Case	Voltage - Output 1	Type
Delta Electronics SH01S2412A	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	26.4 V	Surface Mount	85 °C	-40 °C	1	Medical	77 %	21.6 V	84 mA	1.5 kV	SCP	8-SMD Module 5 Leads	12 V	Isolated Module
Delta Electronics SH01S1512A	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	16.5 V	Surface Mount	85 °C	-40 °C	1	Medical	78 %	13.5 V	84 mA	1.5 kV	SCP	8-SMD Module 5 Leads	12 V	Isolated Module
Delta Electronics SH01S2415A	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	26.4 V	Surface Mount	85 °C	-40 °C	1	Medical	79 %	21.6 V	67 mA	1.5 kV	SCP	8-SMD Module 5 Leads	15 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 6.78

General part information

Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
