SKY13526-485LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP6T 2.7GHZ 14QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13526-485LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP6T 2.7GHZ 14QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13526-485LF |
|---|---|
| Circuit | SP6T |
| Frequency Range [Max] | 2.7 GHz |
| Frequency Range [Min] | 400 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.7 dB |
| Isolation | 23 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |

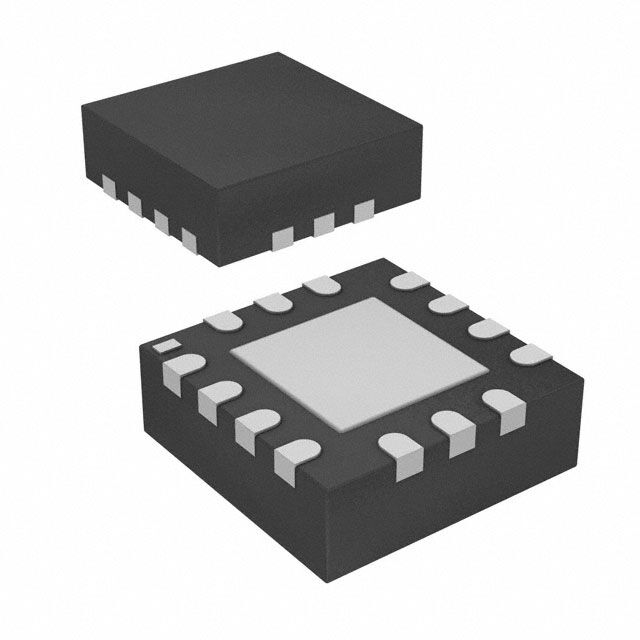

| Package / Case | 14-UFQFN Exposed Pad |
| RF Type | 3G/4G |
| Supplier Device Package | 14-QFN (2x2) |
| Test Frequency | 2 GHz |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.50 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.13 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.50 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.13 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.82 | |||
| Tape & Reel (TR) | 3000 | $ 0.70 | ||
Description
General part information
SKY13526 Series
RF Switch IC 3G/4G SP6T 2.7 GHz 50Ohm 14-QFN (2x2)
