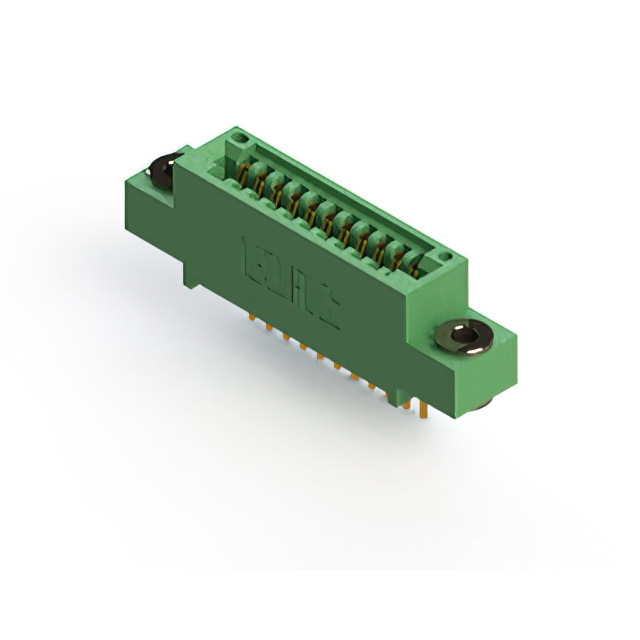

345-011-540-403
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-011-540-403
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-011-540-403 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-011 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Type | Flange Feature | Flange Feature | Read Out | Number of Positions | Card Type | Color | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Pitch [x] | Pitch [x] | Termination Rows | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | 3.25 mm | 0.128 in | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole Right Angle | Gold | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole Right Angle | Gold | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Wire Wrap | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole Right Angle | Gold | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Solder | 2.54 mm | 0.1 in | 1 | 11 | Through Hole | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Cantilever | Single | 11 | Non Specified - Single Edge | Green | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 1 | Wire Wrap | 2.54 mm | 0.1 in | 1 | 11 | Through Hole Right Angle | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
