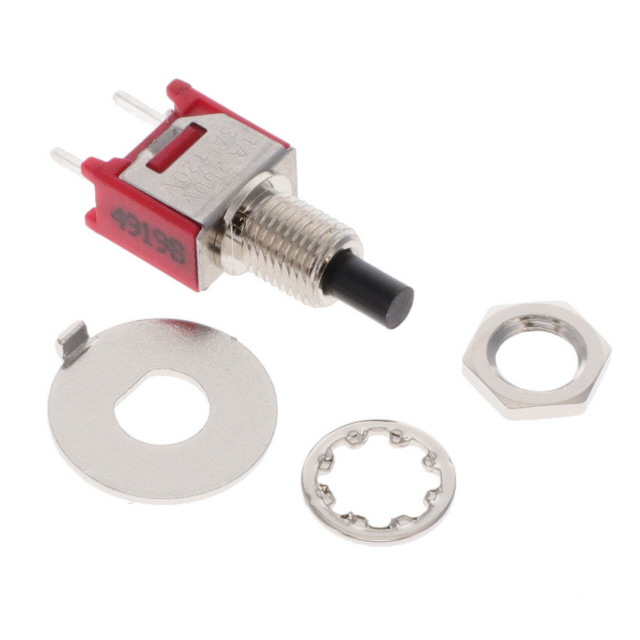

BNP10SCQE

Active

CIT Relay and Switch

SWITCH PB SPST-NO 3A 120V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	BNP10SCQE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Type	Voltage Rating - AC	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Type	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Color - Actuator/Cap
CIT Relay and Switch BNP10SCQE	Standard	120 V	50000 Cycles	4.95 mm	Panel Mount Rear	Round Plunger	No Marking	SPST-NO	85 °C	-40 °C	Off-Mom	28 V	3 A	PC Pin	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
