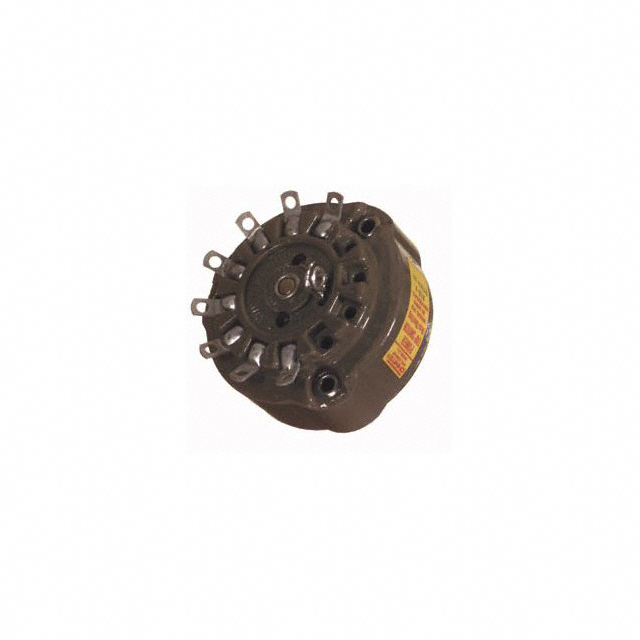

SWITCH ROTARY 12POS 30A 300V
Deep-Dive with AI
Search across all available documentation for this part.
312-12
ActiveOhmite
SWITCH ROTARY 12POS 30A 300V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 312-12 |
|---|---|
| Actuator Length [x] | 28.58 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP12T |
| Contact Material | Silver Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 30 A |
| Depth Behind Panel | 57.2 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 12 |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 20 V |
