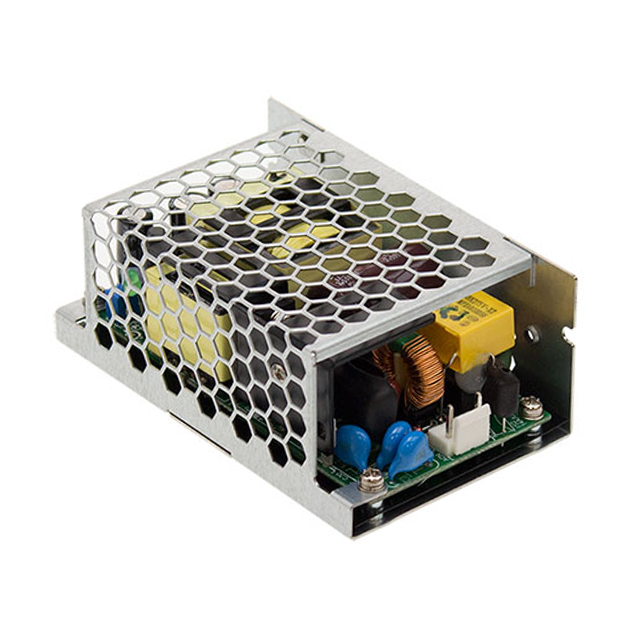

RPS-200-15-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 141W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPS-200-15-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 15V 141W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-200-15-C

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	9.4 A
Efficiency	93.5 %
Features	Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	141 W, 201 W
Size / Dimension [x]	103.4 mm
Size / Dimension [x]	4.07 in
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.44 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

RPS-200 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output 1	Number of Outputs	Type	Approval Agency	Features	Voltage - Output 1	Applications	Mounting Type	Voltage - Isolation	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
MEAN WELL USA Inc. RPS-200-48	70 °C	-30 °C	95 %	3 A	1	Open Frame	CB CE cURus TUV	Adjustable Output	48 V	Medical	Chassis Mount	4000 V	144 W	202 W	50.8 mm	1.14 in 29 mm	101.6 mm	80 VAC 113 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RPS-200-48-C	70 °C	-30 °C	95 %	3 A	1	Enclosed	CB CE cURus TUV	Adjustable Output	48 V	Medical	Chassis Mount	4000 V	144 W	202 W	62 mm	40 mm	103.4 mm	80 VAC 113 VDC	264 VAC 370 VDC	1.57 "	4.07 in	2.44 "
MEAN WELL USA Inc. RPS-200-24-C	70 °C	-30 °C	94 %		1	Enclosed	CB CE cURus TUV	Adjustable Output	24 V	Medical	Chassis Mount	4000 V	142 W	202 W	62 mm	40 mm	103.4 mm	80 VAC 113 VDC	264 VAC 370 VDC	1.57 "	4.07 in	2.44 "
MEAN WELL USA Inc. RPS-200-12-C	70 °C	-30 °C	93 %	11.7 A	1	Enclosed	CB CE cURus TUV	Adjustable Output	12 V	Medical	Chassis Mount	4000 V	140 W	200 W	62 mm	40 mm	103.4 mm	80 VAC 113 VDC	264 VAC 370 VDC	1.57 "	4.07 in	2.44 "
MEAN WELL USA Inc. RPS-200-15	70 °C	-30 °C	93.5 %	9.4 A	1	Open Frame	CB CE cURus TUV	Adjustable Output	15 V	Medical	Chassis Mount	4000 V	141 W 201 W		50.8 mm	1.14 in 29 mm	101.6 mm	80 VAC 113 VDC	264 VAC 370 VDC
MEAN WELL USA Inc. RPS-200-15-C	70 °C	-30 °C	93.5 %	9.4 A	1	Enclosed	CB CE cURus TUV	Adjustable Output	15 V	Medical	Chassis Mount	4000 V	141 W 201 W		62 mm	40 mm	103.4 mm	80 VAC 113 VDC	264 VAC 370 VDC	1.57 "	4.07 in	2.44 "
MEAN WELL USA Inc. RPS-200-12	70 °C	-30 °C	93 %	11.7 A	1	Open Frame	CB CE cURus TUV	Adjustable Output	12 V	Medical	Chassis Mount	4000 V	140 W	200 W	50.8 mm	1.14 in 29 mm	101.6 mm	80 VAC 113 VDC	264 VAC 370 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.30
		5	$ 49.80
		10	$ 47.60
		25	$ 46.62

Description

General part information

RPS-200 Series

Enclosed AC DC Converters 1 Output 15V 80 ~ 264 VAC, 113 ~ 370 VDC Input
