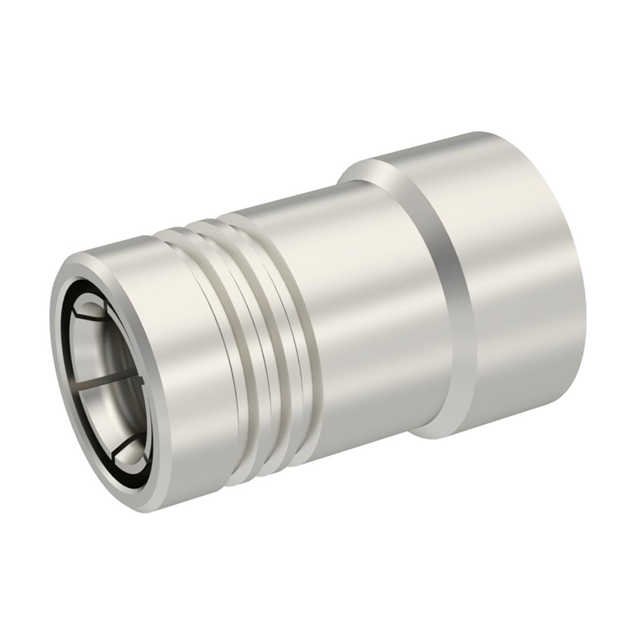

R404105000

Active

Radiall USA, Inc.

TERMINATION: SMB F 4GHZ 1W 50OHM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: SMB F 4GHZ 1W 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	R404105000

Body Finish	Nickel
Body Material	Brass
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Body Finish	Mounting Type	Impedance	Connector Style	Contact Finish	Connector Type	Frequency - Max [Max]	Dielectric Material	Contact Material	Features
Radiall USA, Inc. R404101720
Radiall USA, Inc. R404101000	Brass	Nickel	Cap Free Hanging	50 Ohms	SMA	Gold	Male Pin Plug	4 GHz	Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R404101120	Brass	Nickel	Cap Free Hanging	50 Ohms	SMA	Gold	Male Pin Plug	4 GHz	Polytetrafluoroethylene (PTFE)	Brass	Chain
Radiall USA, Inc. R404101019	Brass	Gold	Cap Free Hanging	50 Ohms	SMA	Gold	Male Pin Plug	4 GHz	Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R404102000	Brass	Nickel	Cap Free Hanging	50 Ohms	SMA	Gold	Female Socket Jack	4 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper
Radiall USA, Inc. R404105000	Brass	Nickel	Cap Free Hanging	50 Ohms	SMB	Gold	Female Socket Plug	4 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 80.21

General part information

Terminator Coax Connector Plug, Female Socket SMB 50 Ohms
