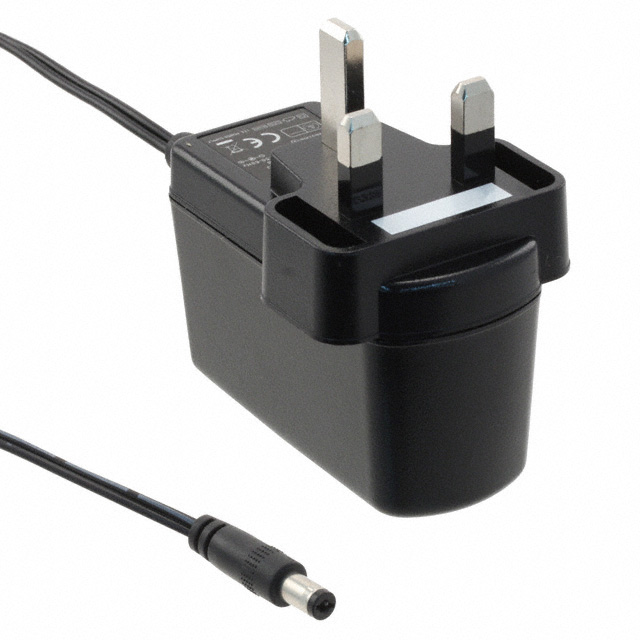

EPSA050250UB-P5P-EJ

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 12W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Current - Output (Max) [Max]	Efficiency	Input Connector	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Output Connector [diameter]	Output Connector [x]	Output Connector	Approval Agency	Input Type	Standard Number	Polarization	Power (Watts)	Cord Length	Cord Length	Region Utilized	Operating Temperature [Max]	Voltage - Output	No Load Power Consumption	Form
CUI Inc. EPSA050250UB-P5P-EJ	90 VAC	264 VAC	ITE (Commercial)	2.5 A	Level V	BS 1363	75 mm	2.95 in	50 mm	47 mm	1.85 in	1.97 "	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	CE cULus GS TUV	Fixed Blade	60950-1	Positive Center	12 W	1.5 m	59 in	United Kingdom	40 °C	5 V
CUI Inc. EPSA050250UE-P6RP-EJ	90 VAC	264 VAC	ITE (Commercial)	2.5 A	Level V	CEE 7/16	75 mm	2.95 in	50 mm	47 mm	1.85 in	1.97 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	cULus	Fixed Blade		Positive Center	13 W	1.83 m	72 in	Europe	40 °C	5 V	300 mW	Wall Mount (Class II)
CUI Inc. EPSA050250U-P5P-EJ	90 VAC	264 VAC	ITE (Commercial)	2.5 A	Level V	NEMA 1-15P	75 mm	2.95 in	50 mm	47 mm	1.85 in	1.97 "	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cULus	Fixed Blade		Positive Center	13 W	1.83 m	72 in	North America	40 °C	5 V	300 mW	Wall Mount (Class II)
CUI Inc. EPSA050250U-P6P-EJ	90 VAC	264 VAC	ITE (Commercial)	2.5 A	Level V	NEMA 1-15P	75 mm	2.95 in	50 mm	47 mm	1.85 in	1.97 "	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	cULus	Fixed Blade		Positive Center	13 W	1.83 m	72 in	North America	40 °C	5 V	300 mW	Wall Mount (Class II)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 12 W AC/DC External Wall Mount Adapter Fixed Blade Input
