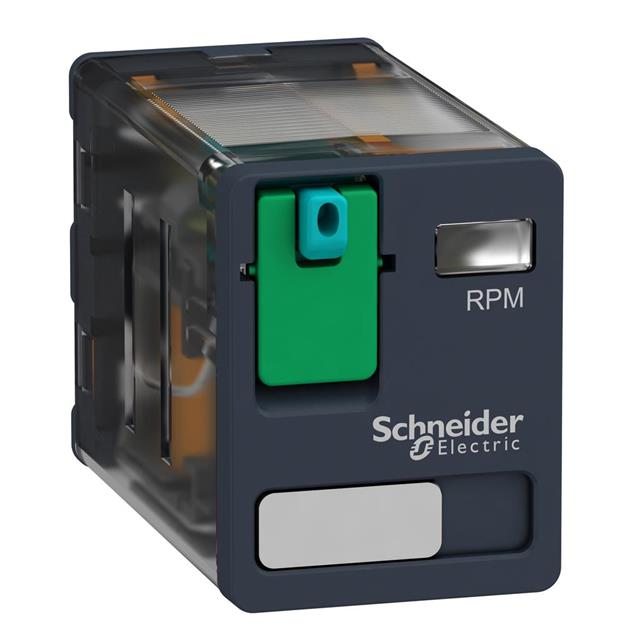

RPM21FD

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Deep-Dive with AI

Search across all available documentation for this part.

RPM21FD

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPM21FD

Approval Agency	CSA, UL, EAC
Coil Current	8.2 mA
Coil Resistance	13.44 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	15 A
Features	Test Button
Load - Max Switching	3750 VA, 420 W
Mounting Type	Socketable
Must Operate Voltage	88 VDC
Must Release Voltage	11 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RPM21 Series

Part	Release Time	Switching Voltage	Features	Coil Current	Coil Voltage	Coil Type	Mounting Type	Operate Time	Contact Rating (Current)	Must Release Voltage	Load - Max Switching	Relay Type	Contact Form	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Termination Style	Must Operate Voltage	Approval Agency
SQUARE D BY SCHNEIDER ELECTRIC RPM21BD	20 ms	28 VDC 250 VAC	Lighted Indicator	37.5 mA	24 VDC	Non Latching	Socketable	20 ms	15 A	2.4 VDC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	640 Ohms	Plug In	19.2 VDC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21ED	20 ms	28 VDC 250 VAC	Test Button	18.8 mA	48 VDC	Non Latching	Socketable	20 ms	15 A	4.8 VDC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	2560 Ohms	Plug In	38.4 VDC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21P7	20 ms	28 VDC 250 VAC	Lighted Indicator	14.1 mA	230 VAC	Non Latching	Socketable	20 ms	15 A	34.5 VAC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	16.27 kOhms	Plug In	184 VAC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21B7	20 ms	28 VDC 250 VAC	Lighted Indicator	135.6 mA	24 VAC	Non Latching	Socketable	20 ms	15 A	3.6 VAC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	177 Ohms	Plug In	19.2 VAC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21JD	20 ms	28 VDC 250 VAC	Lighted Indicator	75 mA	12 VDC	Non Latching	Socketable	20 ms	15 A	1.2 VDC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	160 Ohms	Plug In	9.6 VDC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21E7	20 ms	28 VDC 250 VAC	Test Button	67.8 mA	48 VAC/DC	Non Latching	Socketable	20 ms	15 A	7.2 VAC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	708 Ohms	Plug In	38.4 VAC	CSA EAC UL
SQUARE D BY SCHNEIDER ELECTRIC RPM21FD	20 ms	28 VDC 250 VAC	Test Button	8.2 mA	110 VDC	Non Latching	Socketable	20 ms	15 A	11 VDC	420 W 3750 VA	General Purpose	DPDT (2 Form C)	Silver Nickel (AgNi)	-40 °C	55 °C	13.44 kOhms	Plug In	88 VDC	CSA EAC UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.24

Description

General part information

RPM21 Series

General Purpose Relay DPDT (2 Form C) 110VDC Coil Socketable
