DS03-254-03BE

Active

CUI Devices

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS03-254-03BE

Active

CUI Devices

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS03-254-03BE

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	9.9 mm
Height Above Board	0.39 in
Length	9.04 mm
Length [x]	0.356 in
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

DS03-254 Series

Part	Voltage Rating	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Contact Material	Actuator Level	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length [x]	Body Material	Current Rating (Amps)	Electrical Life	Contact Finish	Height Above Board	Height Above Board	Actuator Type	Termination Style	Circuit	Length [x]	Length
CUI Devices DS03-254-08BE	24 VDC	8	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C	21.74 mm	0.856 in	Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST
CUI Devices DS03-254-02BE	24 VDC	2	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C		0.256 in	Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST	6.5 mm
CUI Devices DS03-254-04BE	24 VDC	4	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C	11.58 mm		Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST		0.456 in
CUI Devices DS03-254-07BE	24 VDC	7	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C		0.756 "	Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST	19.2 mm
CUI Devices DS03-254-06BE	24 VDC	6	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C	16.66 mm		Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST		0.656 in
CUI Devices DS03-254-10BE	24 VDC	10	0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C		1.056 in	Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST	26.82 mm
CUI Devices DS03-254-03BE	24 VDC		0.1 in	Full	2.54 mm	Copper Alloy	Raised	Through Hole Right Angle	85 °C	-40 °C	9.04 mm	0.356 in	Polybutylene Terephthalate (PBT)	25 mA	2000 Steps	Gold	9.9 mm	0.39 in	Slide (Standard)	PC Pin	SPST

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.90
		10	$ 0.73
		25	$ 0.68
		100	$ 0.59
		250	$ 0.55
		500	$ 0.51
		1000	$ 0.48
		2500	$ 0.44
		5000	$ 0.42

Description

General part information

DS03-254 Series

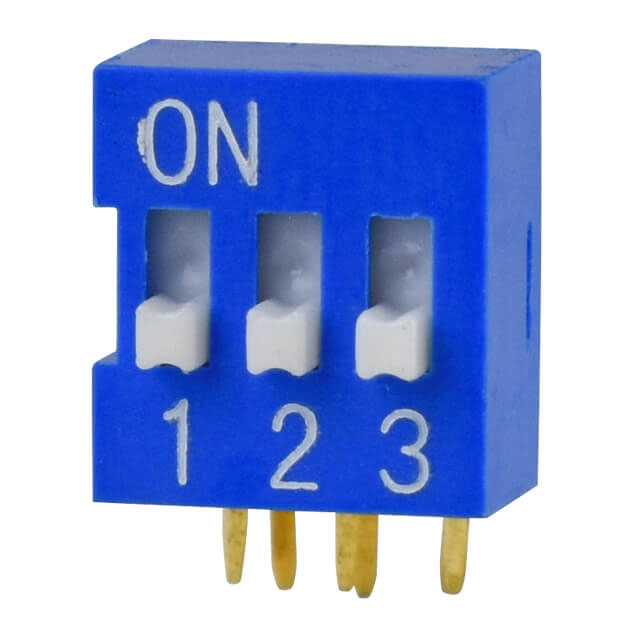

Dip Switch SPST 3 Position Through Hole, Right Angle Slide (Standard) Actuator 25mA 24VDC
