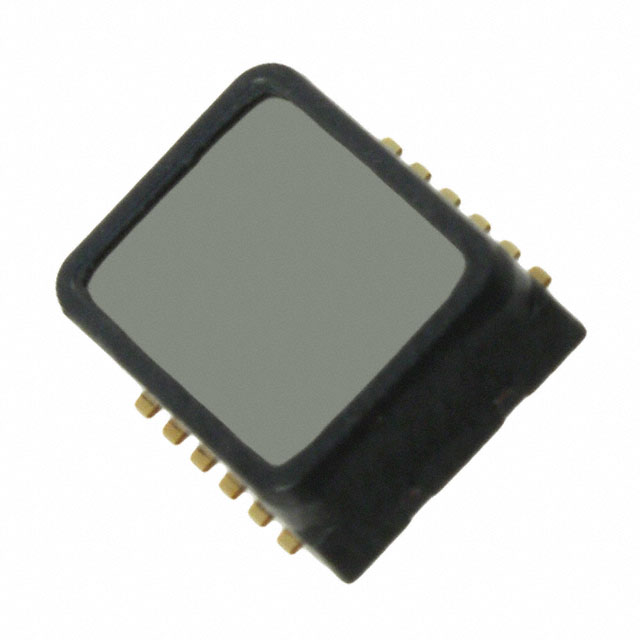

SCA3100-D07-1
ActiveMurata Power Solutions Inc.
ACCELEROMETER 6G SPI 12SMD
Deep-Dive with AI
Search across all available documentation for this part.
SCA3100-D07-1
ActiveMurata Power Solutions Inc.
ACCELEROMETER 6G SPI 12SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCA3100-D07-1 |
|---|---|
| Acceleration Range | 6 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth [Max] | 55 Hz |
| Bandwidth [Min] | 30 Hz |
| Features | Temperature Sensor |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPI |
| Package / Case | 12-SMD |
| Qualification | AEC-Q100 |
| Sensitivity (LSB/g) | 650 LSB/g |
| Supplier Device Package | 12-SMD |
| Type | Digital |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 47.63 | |
| 10 | $ 39.69 | |||
| 25 | $ 35.16 | |||
| Digi-Reel® | 1 | $ 47.63 | ||
| 10 | $ 39.69 | |||
| 25 | $ 35.16 | |||
| Tape & Reel (TR) | 100 | $ 34.02 | ||
| 300 | $ 32.89 | |||
Description
General part information
SCA3100 Series
Accelerometer X, Y, Z Axis ±6g 30Hz ~ 55Hz 12-SMD
Documents
Technical documentation and resources
