M7VXK-2506R

Active

3M (TC)

D-SUB CABLE - MMU25K/MC26M/X

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE - MMU25K/MC26M/X

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Shielding	Length	Length	Color	2nd Connector
3M (TC) M7VXK-0910R	Plug Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m	Multiple Ribbon	Individual Wire Leads
3M (TC) M7VXK-2506J	Plug Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m		Individual Wire Leads
3M (TC) M7VXK-5006R	Plug Male Pins	DB50	0.76 Ám	30 Áin	Gold	50	Unshielded	6 ft	1.83 m	Multiple Ribbon	Individual Wire Leads
3M (TC) M7VXK-1510R	Plug Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	10 ft	3.05 m	Multiple Ribbon	Individual Wire Leads
3M (TC) M7VXK-1506R	Plug Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	6 ft	1.83 m	Multiple Ribbon	Individual Wire Leads
3M (TC) M7VXK-3706J	Plug Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	6 ft	1.83 m		Individual Wire Leads
3M (TC) M7VXK-0910J	Plug Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m		Individual Wire Leads
3M (TC) M7VXK-2506R	Plug Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m	Multiple Ribbon	Individual Wire Leads
3M (TC) M7VXK-3710R	Plug Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	10 ft	3.05 m	Multiple Ribbon	Individual Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

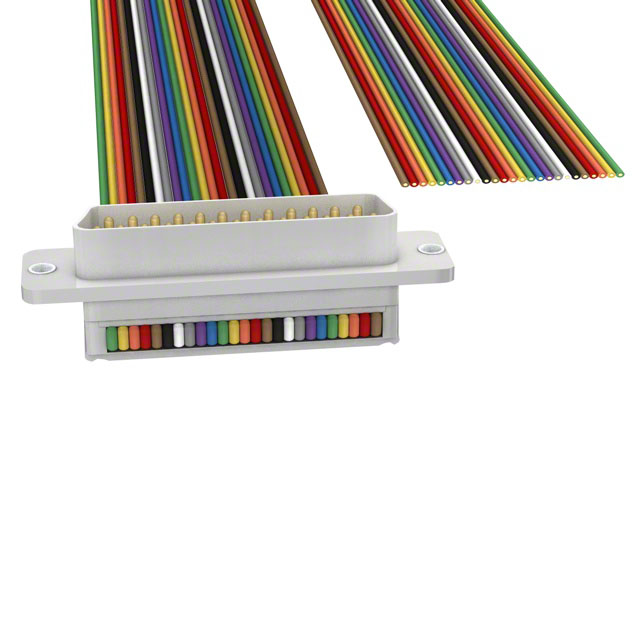

D-Sub Cable Assembly DB25 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
