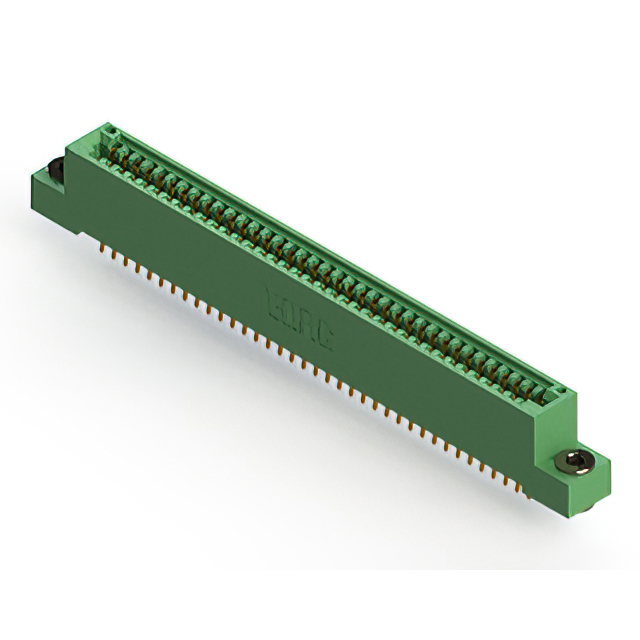

345-074-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-074-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-074-556-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-074 Series

...

Part	Contact Finish	Mounting Type	Number of Positions	Gender	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature	Number of Rows	Termination Rows	Contact Type	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-074-524-807	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy
EDAC Inc. 345-074-555-803	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Extender	2.95 mm	0.116 in
EDAC Inc. 345-074-500-558	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 345-074-544-808	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy
EDAC Inc. 345-074-500-207	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy
EDAC Inc. 345-074-556-203	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Floating Bobbin Flush Mount	2	2	Cantilever	Copper Alloy	Card Extender	2.95 mm	0.116 in
EDAC Inc. 345-074-541-288	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 345-074-524-588	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 345-074-560-207	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy	Card Extender
EDAC Inc. 345-074-556-888	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.50

Description

General part information

345-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
