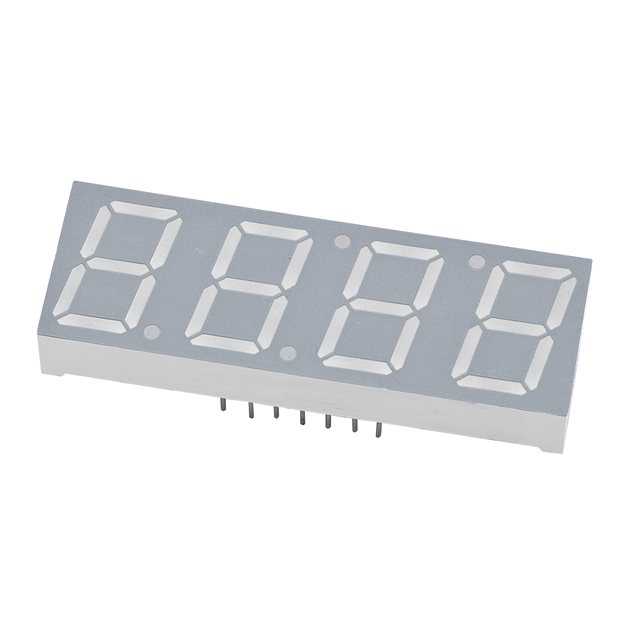

CDQC56G1WL

Active

ChromeLED

DISPLAY 7SEG 0.56" QUAD GREEN 12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDQC56G1WL

Active

ChromeLED

DISPLAY 7SEG 0.56" QUAD GREEN 12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDQC56G1WL

Color	Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	14.2 mm
Digit/Alpha Size	0.56 in
Display Type	7-Segment
Millicandela Rating	10.5 mcd
Number of Characters	4
Package / Case	12-DIP
Power Dissipation (Max)	65 mW
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	1.98 in
Size / Dimension [y]	50.4 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	568 nm

CDQC56 Series

Part	Color	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Common Pin	Current - Test	Power Dissipation (Max) [Max]	Millicandela Rating	Wavelength - Peak	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Display Type	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max)
ChromeLED CDQC56Y1W	Yellow	4	14.2 mm	0.56 in	12-DIP	Common Cathode	10 mA	75 mw	4.7 mcd	588 nm	0.315 "	0.748 in	8 mm	1.98 in	50.4 mm	19 mm	7-Segment	2 V
ChromeLED CDQC56G1WL	Green	4	14.2 mm	0.56 in	12-DIP	Common Cathode	20 mA		10.5 mcd	568 nm	0.315 "	0.748 in	8 mm	1.98 in	50.4 mm	19 mm	7-Segment	2 V	65 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CDQC56 Series

Display Modules - LED Character and Numeric Green 7-Segment 4 Character Common Cathode 2V 20mA 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.40mm x 8.00mm) 12-DIP
