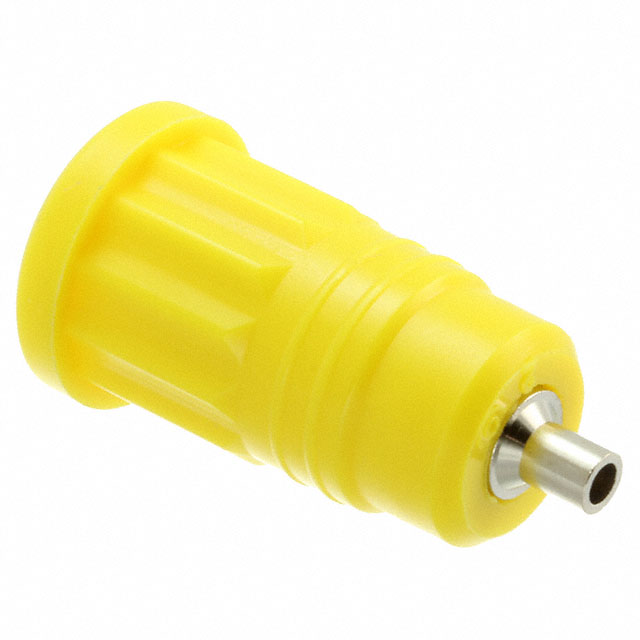

CT2244-4

Active

Cal Test Electronics

CONN BANANA JACK SOLDER YELLOW

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER YELLOW

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Body Material	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Contact Finish	Contact Material	Plug/Mating Plug Diameter	Gender
Cal Test Electronics CT2244-9	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	White	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-5	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Green	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-4	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Yellow	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-2	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Red	Nickel	Brass	Standard Banana	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40

General part information

Banana Jack Connector Standard Banana Solder Yellow

Technical documentation and resources
