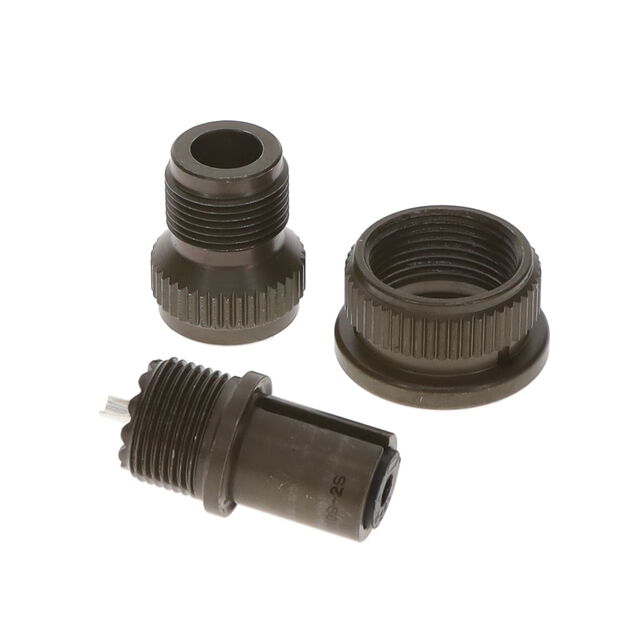

MS3106A10S-2S - MS3106A10S-2S

MS3106A10S-2S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3106A10S-2S - MS3106A10S-2S

MS3106A10S-2S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3106A10S-2S
ApplicationsMilitary, Marine
ColorOlive Drab
Connector TypeFemale Sockets, Plug
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
FeaturesCoupling Nut, Backshell
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting TypeFree Hanging (In-Line)
Number of Positions1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert [custom]10S-2
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 45.41
10$ 41.67
25$ 40.07
50$ 38.74
100$ 36.60
250$ 35.53

Description

General part information

MS3106A10 Series

1 Position Circular Connector Plug, Female Sockets Solder Cup
