Q-3100Y000H072I

Active

Amphenol Custom Cable

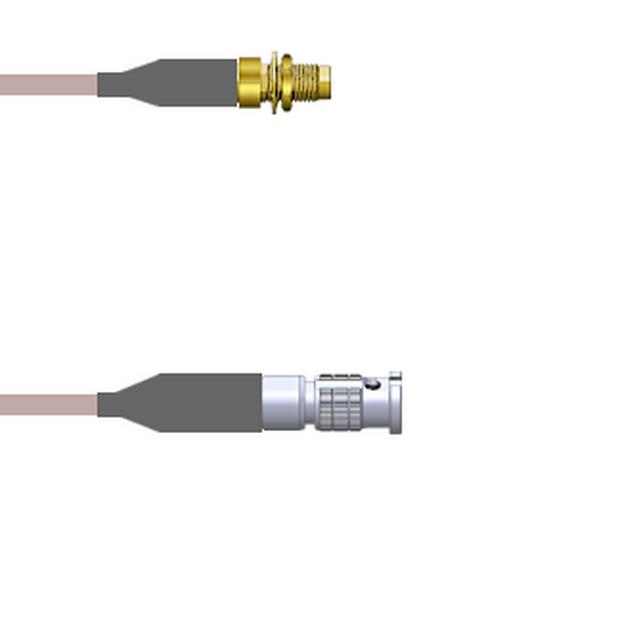

COAX CBL HD-BNC TO SMA 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3100Y000H072I

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	HD-BNC to SMA

Part	2nd Connector	Style	2nd Contact Gender	Features	Color	Cable Type	Overall Impedance	Cable Impedance	1st Connector	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Feature	Connector Impedance	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-3100Y000H108I	SMA Jack	HD-BNC to SMA	Female	Shielded	Copper	RG-142	50 Ohms	50 Ohms	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	Male	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-3100Y000H072I	SMA Jack	HD-BNC to SMA	Female	Shielded	Copper	RG-142	50 Ohms	50 Ohms	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	Male	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	1.8 m	6 ft	72 in
Amphenol Custom Cable Q-3100Y000H084I	SMA Jack	HD-BNC to SMA	Female	Shielded	Copper	RG-142	50 Ohms	50 Ohms	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	Male	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	2.1 m	7 ft	84 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial HD-BNC to SMA RG-142 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
