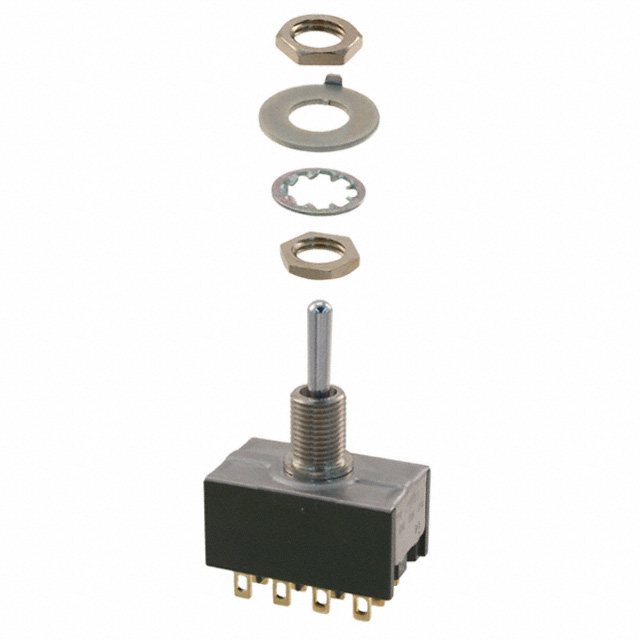

M2044SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DP3T 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2044SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DP3T 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2044SS1G01 |
|---|---|
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DP3T |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Jumper needed to achieve triple throw |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
M2044SS Series
| Part | Bushing Thread | Voltage Rating - DC | Circuit | Illumination | Panel Cutout Dimensions [diameter] | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Switch Function | Termination Style | Voltage Rating - AC | Actuator Material | Current Rating (Amps) | Electrical Life | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 1/4-40 | 30 V | DP3T | Non-Illuminated | 6.5 mm | Standard Round | -30 ░C | 85 °C | Jumper needed to achieve triple throw | On-On-On | Solder Lug | 125 V | Brass Chrome Plated | 3 A 6 A | 25000 Steps | |
NKK Switches | 1/4-40 | 30 V | DP3T | Non-Illuminated | 6.5 mm | Standard Round with Cap | -30 ░C | 85 °C | Jumper needed to achieve triple throw | On-On-On | Solder Lug | 125 V | Brass Chrome Plated | 3 A 6 A | 25000 Steps | 13.5 mm |
NKK Switches | 1/4-40 | 30 V | DP3T | Non-Illuminated | 6.5 mm | Standard Round with Cap | -30 ░C | 85 °C | Jumper needed to achieve triple throw | On-On-On | Solder Lug | 125 V | Brass Chrome Plated | 3 A 6 A | 25000 Steps | 13.5 mm |
NKK Switches | 1/4-40 | 28 V | DP3T | Non-Illuminated | 6.5 mm | Standard Round | -30 ░C | 85 °C | Jumper needed to achieve triple throw | On-On-On | Solder Lug | 28 V | Brass Chrome Plated | 0.4 VA | 50000 Cycles | |
NKK Switches | 1/4-40 | 30 V | DP3T | Non-Illuminated | 6.5 mm | Standard Round with Cap | -30 ░C | 85 °C | Jumper needed to achieve triple throw | On-On-On | Solder Lug | 125 V | Brass Chrome Plated | 3 A 6 A | 25000 Steps | 13.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M2044SS Series
Toggle Switch DP3T Panel Mount
