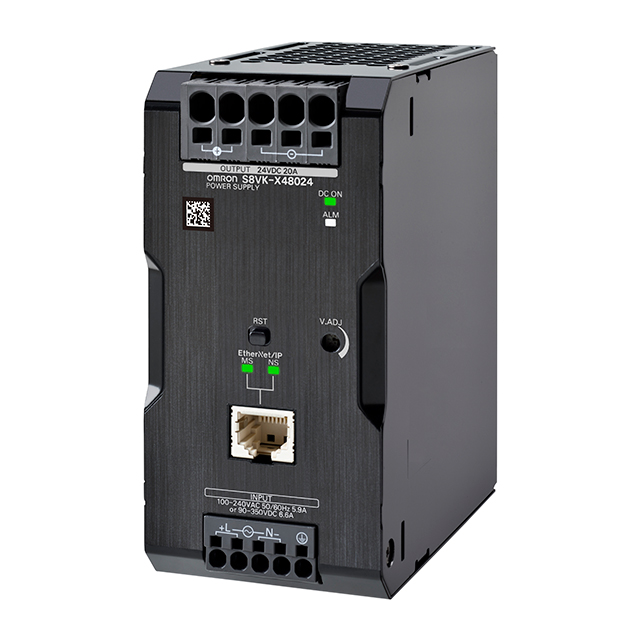

S8VK-X48024-EIP

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 480W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-X48024-EIP

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	RCM, cURus, KC, EAC, UL, CE, TUV
Current - Output (Max) [Max]	20 A
DC Voltage - Input (Max) [Max]	350 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	94 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Power (Watts)	480 W
Size / Dimension [x]	4.61 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.36 "
Size / Dimension [y]	60 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Features	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Power (Watts)	Input Type	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Efficiency	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency
Omron Electronics Inc-EMC Div S8VK-X48024A-EIP	Adjustable Output IP20 Universal Input	90 V	350 V	480 W	AC or DC	24 V	20 A	1	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	3000 V	94 %	ITE (Commercial)	85 VAC	264 VAC	CE cURus EAC KC RCM TUV UL
Omron Electronics Inc-EMC Div S8VK-X48024-EIP	Adjustable Output IP20 Universal Input	90 V	350 V	480 W	AC or DC	24 V	20 A	1	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	3000 V	94 %	ITE (Commercial)	85 VAC	264 VAC	CE cURus EAC KC RCM TUV UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 480W
