03K105-S00S3
ActiveRosenberger

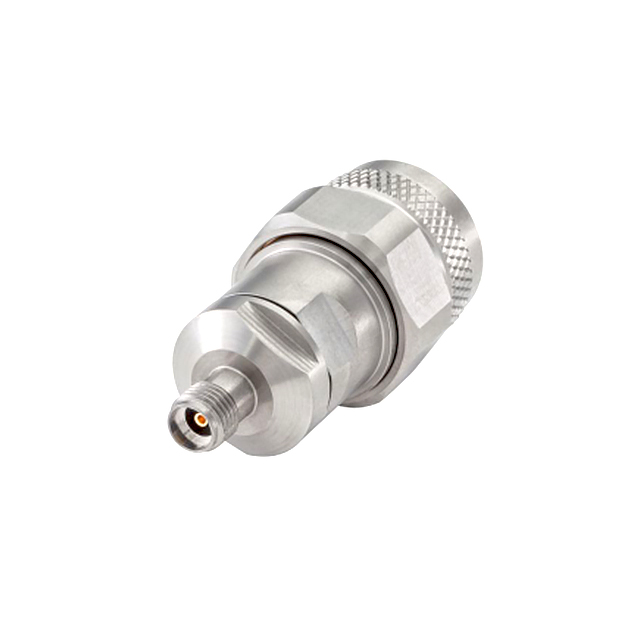

ADAPT3.50MM JACK - N PLUG
Deep-Dive with AI
Search across all available documentation for this part.
03K105-S00S3
ActiveRosenberger
ADAPT3.50MM JACK - N PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 03K105-S00S3 |
|---|---|
| Adapter Series | RPC-N, RPC-3.50 |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket |
| Convert To (Adapter End) | Male Pin, N Plug |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 206.15 | |
| 10 | $ 191.03 | |||
| 25 | $ 184.16 | |||
| 50 | $ 182.78 | |||
Description
General part information
03K105 Series
Adapter Coaxial Connector 3.5mm Jack, Female Socket To N Plug, Male Pin 50 Ohms
