ETMA240460UC-P51-WP
ObsoleteCUI Inc.

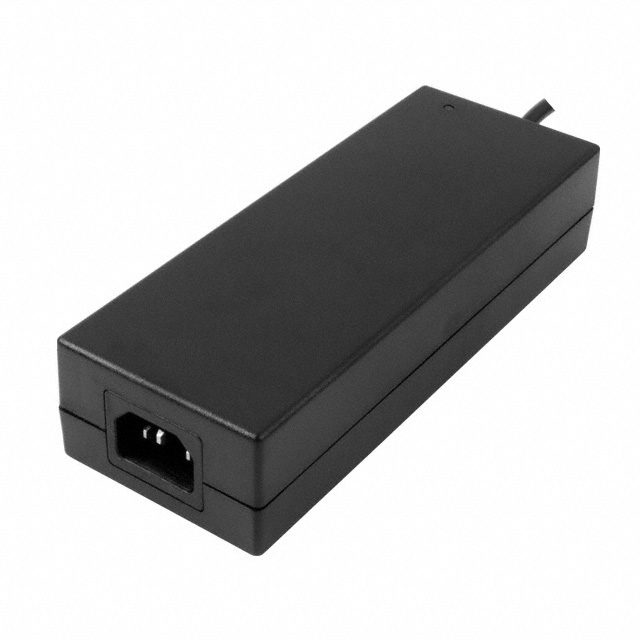

AC/DC DESKTOP ADAPTER 24V 110W
Deep-Dive with AI
Search across all available documentation for this part.
ETMA240460UC-P51-WP
ObsoleteCUI Inc.
AC/DC DESKTOP ADAPTER 24V 110W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ETMA240460UC-P51-WP |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, UL |
| Cord Length | 1.05 m |
| Cord Length | 41.34 in |
| Current - Output (Max) [Max] | 4.6 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 110 W |
| Region Utilized | North America |
| Size / Dimension [x] | 170 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 64.8 mm |
| Size / Dimension [y] | 2.55 " |
| Size / Dimension [z] | 38.5 mm |
| Size / Dimension [z] | 1.52 in |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
| Weight | 1.4 lbs |
| Weight | 635 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ETMA240460 Series
24V 110 W AC/DC External Desktop (Class I) Adapter Cord Input
