0194330014
ActiveMolex

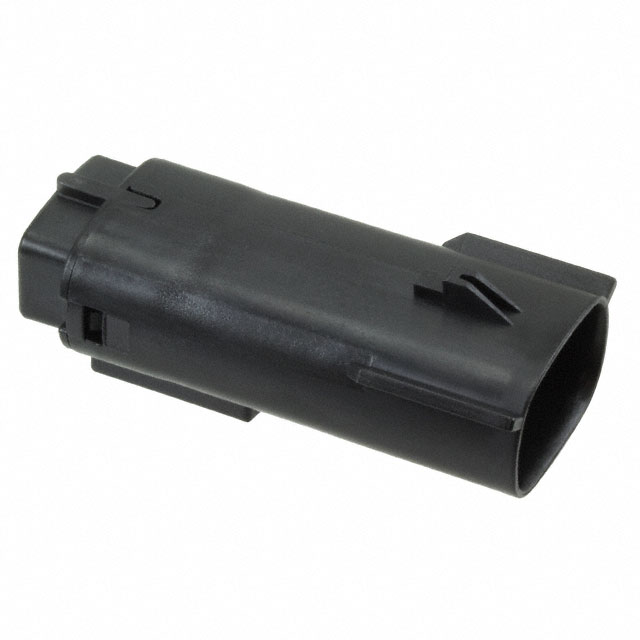

CONN PLUG HSG 2POS 7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
0194330014
ActiveMolex
CONN PLUG HSG 2POS 7.62MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0194330014 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.3 in |
| Pitch [x] | 7.62 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.26 | |
| 10 | $ 2.87 | |||
| 240 | $ 2.30 | |||
Description
General part information
019433 Series
2 Rectangular Connectors - Housings Plug Black 0.300" (7.62mm)
Documents
Technical documentation and resources
