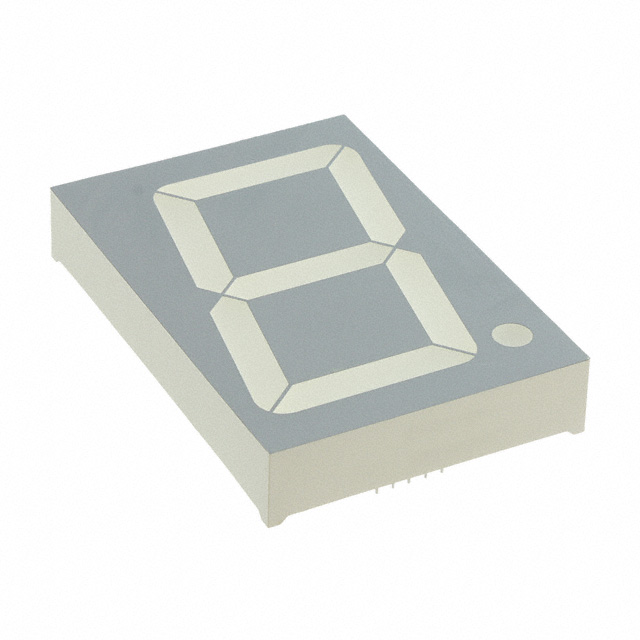

SC23-11EWA

Active

Kingbright

DISPLAY 7SEG 2.24" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC23-11EWA

Active

Kingbright

DISPLAY 7SEG 2.24" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC23-11EWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size [custom]	56.9 mm
Digit/Alpha Size [custom]	2.24 in
Display Type	7-Segment
Number of Characters [custom]	1
Package / Case	2.367 in
Package / Case	60.1 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	300 mW
Size / Dimension [x]	2.756 in
Size / Dimension [x]	70 mm
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	0.472 "
Size / Dimension [z]	12 mm
Wavelength - Peak	627 nm

SC23-11 Series

Part	Display Type	Common Pin	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Wavelength - Peak	Millicandela Rating	Number of Characters [custom]
Kingbright SC23-11SRWA	7-Segment	Common Cathode	56.9 mm	2.24 in	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	300 mW	2.367 in	60.1 mm	10-DIP	7.4 V	20 mA	Red	660 nm	190 mcd	1
Kingbright SC23-11YWA	7-Segment	Common Cathode	56.9 mm	2.24 in	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	300 mW	2.367 in	60.1 mm	10-DIP	8.4 V	20 mA	Yellow	590 nm	40 mcd	1
Kingbright SC23-11EWA	7-Segment	Common Cathode	56.9 mm	2.24 in	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	300 mW	2.367 in	60.1 mm	10-DIP		20 mA	Red	627 nm		1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC23-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 8V 20mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.367", 60.10mm)
